Name: LG-PRO 20W RAYCUS High-Performance Air Cooling Fiber Laser Marking Machine for Metal Plastic New DXF AI Graphic Format Supported
Brand: Wuhan Hgguanghe Technology Co., Ltd.
Availability: InStock

Home Products Laser Marking Machine

LG-PRO 20W RAYCUS High-Performance Air Cooling Fiber Laser Marking Machine for Metal Plastic New DXF AI Graphic Format Supported

Product Details:

Place of Origin:	Hubei, China

Contact Now

Detailed Product Description

Working Accuracy:	0.01mm	Graphic Format Supported:	AI, DXF, JPg
Laser Type:	Fiber Laser	Voltage:	220V 50HZ
Condition:	New	Marking Depth:	0.1-0.5mm
Marking Speed:	≤7000 Mm/s	Cooling System:	Air Cooling
Control Software:	EZCAD	Weight (kg):	70
Key Selling Points:	Low Noise Level	Warranty:	1 Year
Mode Of Operation:	Pulsed	Configuration:	Bench-top
Feature:	Air-cooled	Model:	LG-pro
Laser Source:	RAYCUS Fiber Laser	Central Wavelength:	1064 Nm
Output Power:	Nominal Average: 20W	Pulse Repetition Rate:	30~60 KHz
Scanning Speed:	≤7000 Mm/s	Focusing Lens:	Optional: F=100 Mm / F=210 Mm / F=254 Mm; Standard: F=160 Mm
Marking Area:	7070 Mm; 105105 Mm; 140140 Mm; 170170 Mm	Standard Line Width:	0.06 Mm (material-dependent) @F=160 Mm
Min. Character Height:	0.2 Mm @F=160 Mm

Product Description

Specification

Parameter Category	Specifications
Model	HGGH-LG20
Laser Source	RAYCUS Fiber Laser
Central Wavelength	1064 nm
Output Power	Nominal Average: 20W
Pulse Repetition Rate	30~60 kHz
Scanning Speed	≤7000 mm/s
Focusing Lens	Standard: F=160 mm
Focusing Lens		Optional: F=100 mm / F=210 mm / F=254 mm
Marking Area	F=100 mm: 70×70 mm
		F=160 mm: 105×105 mm
		F=210 mm: 140×140 mm
		F=254 mm: 170×170 mm
Marking Precision	Standard Line Width: 0.06 mm (material-dependent) @F=160 mm
Marking Precision		Min. Character Height: 0.2 mm @F=160 mm
Cooling Method	Air-cooled
Control System	Industrial PC + LCD Display

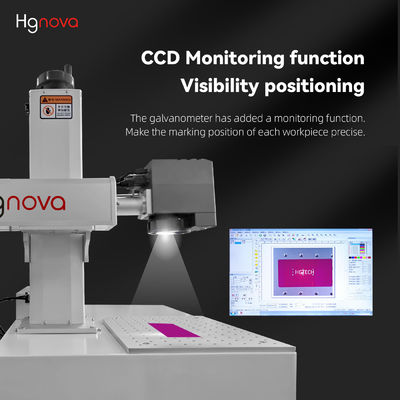

Vision Monitoring	HD Camera for real-time marking inspection
Lifting Mechanism	Motorized/Manual lifting, Stroke: 300 mm
Power Supply	500W / AC220V / 50Hz
Power Supply		Voltage Tolerance: ±5% (Stabilizer required if exceeded)
Grounding	Compliant with National Standard GB
Ambient Temperature	0~40°C (Air conditioning required if exceeded)
Ambient Humidity	30%≤RH≤85% (Risk of condensation if exceeded)
Environment Cleanliness	Oil contamination: Not permitted
Environment Cleanliness		Condensation: Not permitted
Compressed Gas	Optional: 0.5~0.7 MPa clean air (free of moisture/oil residue)
