Name: Portable 50 Watt Handheld Laser Marking Machine Small Size Fiber Laser for Metal Coding & Engraving Supports AI Graphic Format
Brand: Wuhan Hgguanghe Technology Co., Ltd.
Availability: InStock

Home Products Laser Marking Machine

Portable 50 Watt Handheld Laser Marking Machine Small Size Fiber Laser for Metal Coding & Engraving Supports AI Graphic Format

Product Details:

Place of Origin:	Hubei, China

Contact Now

Detailed Product Description

Working Accuracy:	0.03mm	Graphic Format Supported:	DXF
Laser Type:	Fiber Laser	Voltage:	220V
Condition:	New	Marking Depth:	0.01-0.1mm
Marking Speed:	1000-3000 Mm/s	Cooling System:	Air Cooling
Control Software:	Ez Cad	Marking Head Brand:	Ez Cad
Weight (kg):	2	Key Selling Points:	Easy To Operate
Warranty:	1 Year	Mode Of Operation:	Pulsed
Configuration:	Stand-alone	Feature:	Air-cooled
Product Name:	Portable Laser Marking Machine	Laser Source:	Raycus Laser Source
Application:	Metal Plastic Marking Engraving	Laser Wavelength:	1064 Nm

Product Description

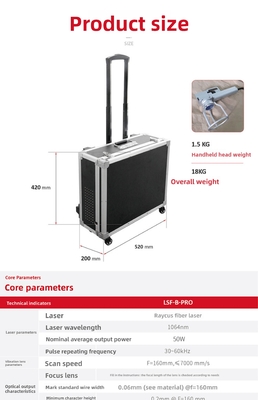

Specification

Technical Parameter	LSF-B-PRO Specification
Laser Source	RAYCUS Fiber Laser
Laser Wavelength	1064 nm
Nominal Average Output Power	50 W
Pulse Repetition Frequency	30-60 kHz
Marking Speed	≤7000 mm/s @ F=160 mm*
Focus Lens	Selectable focal length (configurable)
Standard Line Width	0.06 mm (material-dependent) @ F=160 mm*
Minimum Character Height	0.2 mm @ F=160 mm*
Cooling Method	Air Cooling

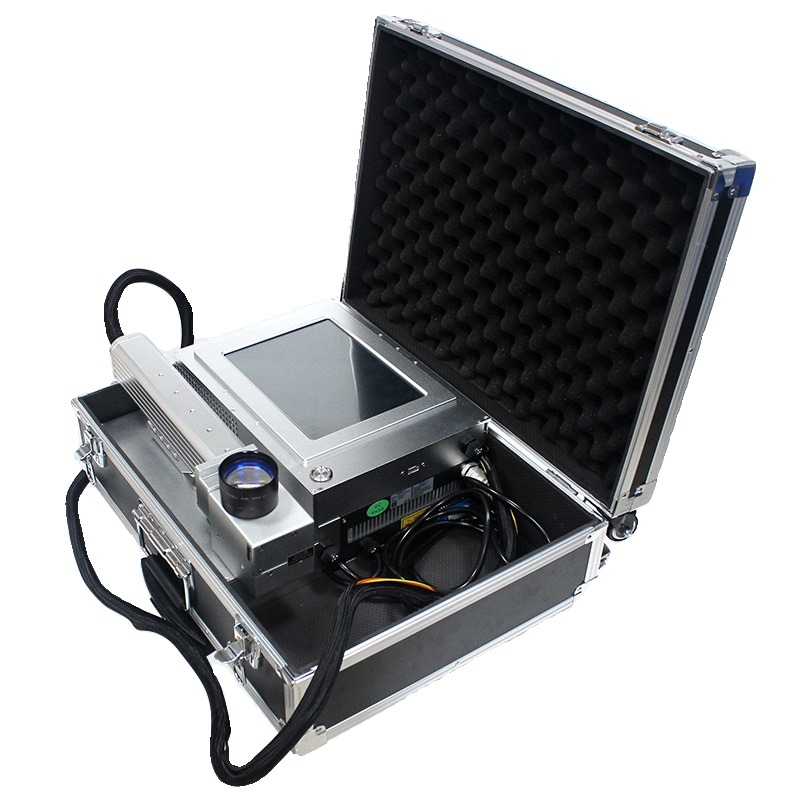

Handpiece	Integrated Handheld Unit
System Power Supply	500W / AC220V /50Hz
Travel Case Dimensions	520 x 420 x 200 mm
Gross Weight	18 kg
