Name: 20W 30W 50W Flying Laser Marking Machine New Condition Fiber Laser Marker DXF for Automatic Assembly Line Product Laser Printer
Brand: Wuhan Hgguanghe Technology Co., Ltd.
Availability: InStock

Home Products Laser Marking Machine

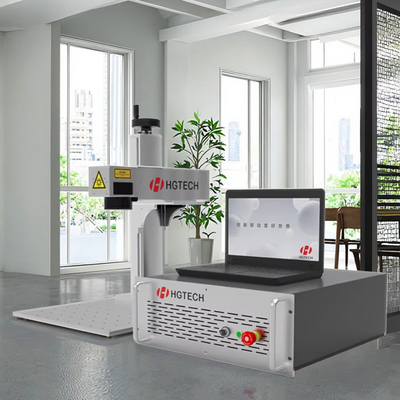

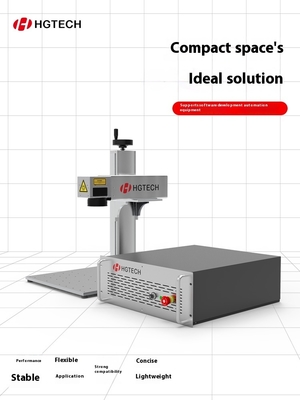

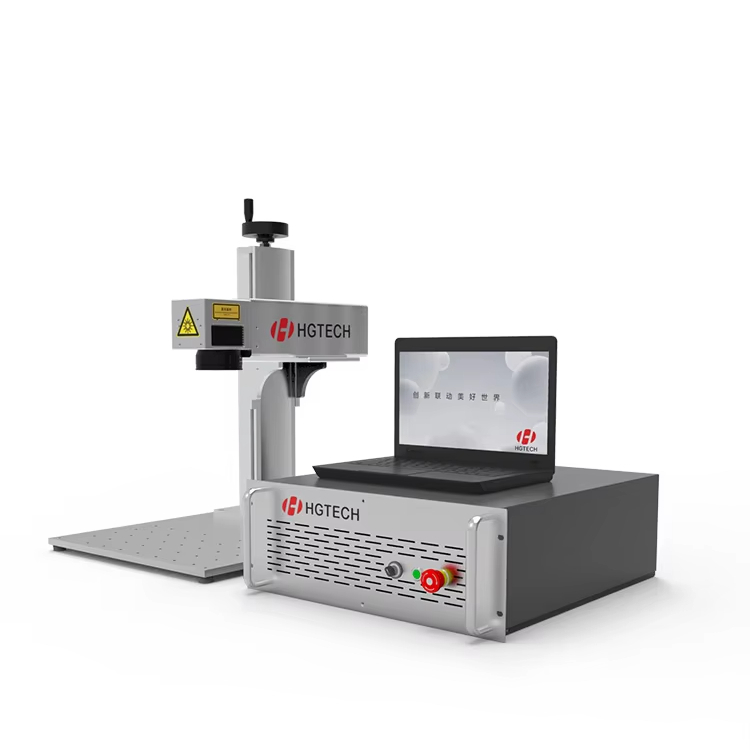

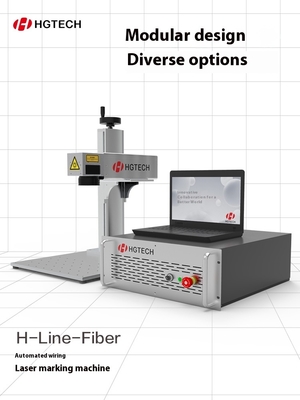

20W 30W 50W Flying Laser Marking Machine New Condition Fiber Laser Marker DXF for Automatic Assembly Line Product Laser Printer

Product Details:

Place of Origin:	Hubei, China

Contact Now

Detailed Product Description

Working Accuracy:	0.01mm	Graphic Format Supported:	DXF
Laser Type:	Fiber Laser	Condition:	New
Marking Depth:	0.01-0.1mm	Marking Speed:	≤7000 Mm/s
Cooling System:	Air Cooling	Control Software:	Genuine Ezcad Software
Weight (kg):	30	Key Selling Points:	High Safety Level
Warranty:	1 Years	Mode Of Operation:	Pulsed
Configuration:	Stand-alone	Feature:	Air-cooled
Product Name:	Flying Fiber Laser Marking Machine	Laser Source:	Raycus IPG JPT
Application:	Print Expiry Date Batch Number	Marking Material:	Aluminum Metal Plastic
Laser Wavelength:	1064 Nm	Working Area:	105*105mm

Parameter	Specification
Laser Source Compatibility	RAYCUS, IPG, JPT, and other major brands
Laser Wavelength	1064 nm
Nominal Average Power	20W / 30W / 50W (configurable)
Scanning Speed	≤7000 mm/s @ F=160 mm
Focus Lenses	Standard: F=160 mm
Focus Lenses	Optional: F=100 mm / F=254 mm
Marking Area	105 × 105 mm
Standard Line Width	0.06 mm (material-dependent) @ F=160 mm
Minimum Character Height	0.2 mm @ F=160 mm
Communication Interfaces	Standard: I/O
Communication Interfaces	Optional: Ethernet, TCP/IP, RS232, Sensor Input
Operating Voltage	AC 220V, 50 Hz
Max. Power Consumption	≤1 kW
Net Weight	≈30 kg
