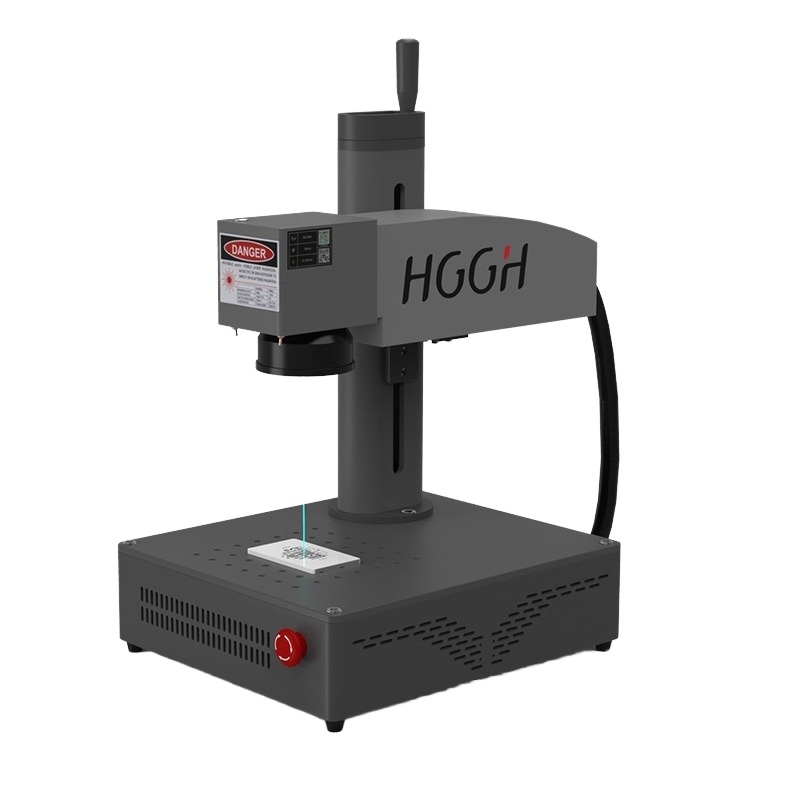

Name: Desktop Laser Marking Machine 20W Small Integrated Engraving Carving Machine for Metal Stainless Steel
Brand: Wuhan Hgguanghe Technology Co., Ltd.
Availability: InStock

Home Products Laser Marking Machine

Desktop Laser Marking Machine 20W Small Integrated Engraving Carving Machine for Metal Stainless Steel

Product Details:

Place of Origin:	Hubei, China

Contact Now

Detailed Product Description

Working Accuracy:	0.01mm	Graphic Format Supported:	DXF
Laser Type:	Fiber Laser	Condition:	New
Marking Depth:	0.1-0.5mm	Marking Speed:	≤7000mm/s, ≤7000mm/s
Cooling System:	Air Cooling	Control Software:	Ez Cad
Weight (kg):	15.4	Key Selling Points:	Easy To Operate
Warranty:	1 Year	Mode Of Operation:	Pulsed
Configuration:	Bench-top	Feature:	Deep Marking
Product Name:	Fiber Laser Marking Engraving Machine	Laser Source:	MAX Fiber Laser
Applicable Material:	Metal Aluminum Stainless Steel	Laser Wavelength:	1064 Nm
Working Area:	110 * 110mm

Specification

Parameter

Model

Laser Power

Laser Source

Laser Wavelength

Marking Line Width

Scanning Speed

Positioning Repeatability

Marking Area

Marking Depth

Marking Accuracy

Cooling System

Total Power Consumption

Supported File Formats

Compatible os

Dimensions (LxWxH)

Weight

Operating Temperature

Humidity

Contaminants

Condensation

Specification

GH-SMART Il

20w

MAX Fiber Laser

1064 nm

0.01-0.05 mm

≤7000 mm/s

≤0.001 mm

110x110 mm

0.015-0.2 mm

≤0.001mm

Air Cooling

≤500W

PLT,DXF,BMP

Windows 7/10/XP (or later)

380 x 330 x 510 mm

Net: 15.4 kg/Gross: 19.8 kg

O°C to 40°C (Air conditioning required beyond this range)

30%-80% RH (Risk of condensation if exceeded)

Must be free from oil/grease

Not permitted
