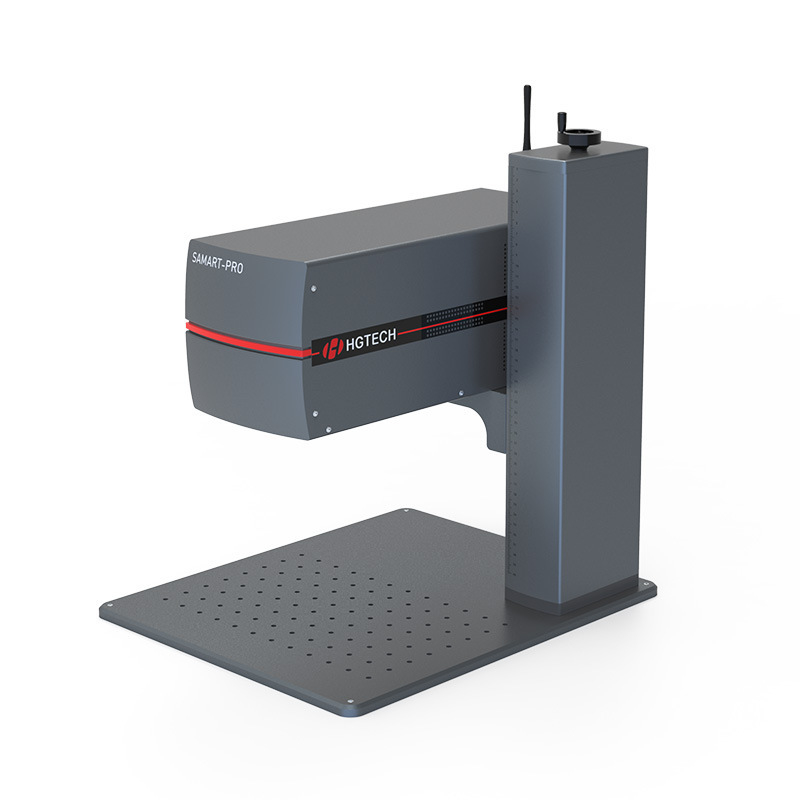

Name: Integrated Mobile Phone Control 20W/30W Fiber Laser Marking Machine for Nameplate Small Laser Engraving Machine
Brand: Wuhan Hgguanghe Technology Co., Ltd.
Availability: InStock

Home Products Laser Marking Machine

Integrated Mobile Phone Control 20W/30W Fiber Laser Marking Machine for Nameplate Small Laser Engraving Machine

Product Details:

Place of Origin:	Hubei, China

Contact Now

Detailed Product Description

Working Accuracy:	0.01mm	Graphic Format Supported:	DXF
Laser Type:	Fiber Laser	Condition:	New
Marking Depth:	0.1-0.5mm	Marking Speed:	≤1200mm/s, ≤1200mm/s
Cooling System:	Air Cooling	Control Software:	Ezcad2
Weight (kg):	18	Key Selling Points:	Easy To Operate
Warranty:	1 Year	Mode Of Operation:	Pulsed
Configuration:	Mini	Feature:	Air-cooled
Product Name:	Laser Marking Machine	Laser Source:	Raycus
Applicable Material:	Metal Nonmetal Materials	Working Area:	110110mm(stardand) / 7070mm (optional)
Laser Wavelength:	1064 Nm

Specification

Parameter

Model

Chassis Material

Laser Source

Laser Wavelength

Output Power

Marking Speed

Control Interface

Cooling System

Minimum Line Width

Positioning Repeatability

Marking Area

Positioning Method

Character Rows

Signal Interface

Marking Modes

Font Support

Operating System

File Formats

Barcode Support

Power Supply

Power Consumption

Net Weight

Dimensions (LxWxH)

Specification

SMART PRO

Industrial-Grade Aluminum Alloy

RAYCUS Fiber Laser

1064 nm

≥20W (Standard) / ≥30W (Optional)

≤1200 mm/s

Android/iOS Mobile/Tablet or External Monitor

Ambient Air Cooling

0.0012 mm

0.003 mm

110x110 mm (Standard)/70x70 mm (Custom)

Red Light Indicator

Unlimited rows within marking area

Static, Analog, On-the-Fly Marking Modes

Start Print, Print Status,Complete,Fault Alarm

Chinese/English,Numbers,Traditional Chinese,Standard Font Library

Dedicated Mobile App or Direct Monitor-Controller Connection

BMP,DXF,HPGL,JPEG,PLT

CODE39, CODE128, CODE126, QR Code, Zhenma (Optiona/)

Input:AC 100-240V/50-60Hz

200w

Machine:18 kg/Marking Head:8.5 kg

420 x350 x 428 mm
