Name: Portable 100W Pulse Laser Cleaning Machine Easy-to-Operate Backpack Handheld Small Rust Removal Unit for Metal New Condition
Brand: Wuhan Hgguanghe Technology Co., Ltd.
Availability: InStock

Home Products Laser Cleaning Machine

Portable 100W Pulse Laser Cleaning Machine Easy-to-Operate Backpack Handheld Small Rust Removal Unit for Metal New Condition

Product Details:

Place of Origin:	Hubei, China
Brand Name:	Hgnova

Contact Now

Detailed Product Description

Condition:	New	Power(w):	100W

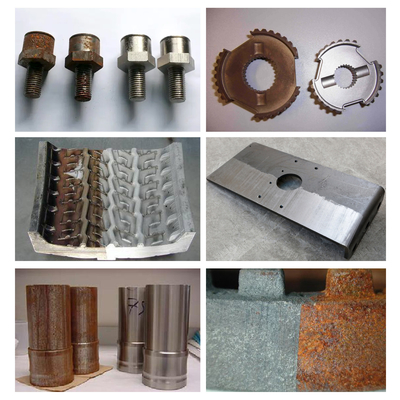

Applicable Material:	Steel, Copper, Stainless Steel, Titanium, Carbon Steel, Metal Mold, Aluminum, Metal	Laser Type:	Fiber Laser
Cleaning Speed:	0-5m²/h	Cleaning Width:	30-100mm
Weight (kg):	12	Key Selling Points:	Easy To Operate
Warranty:	1 Year	Laser Power:	100W
Cooling System:	Air	Product Name:	Handheld Fiber Laser Cleaning Machine
Application:	Dust Removal	Cleaning Process:	Non-contact Laser Cleaning
Cooling Method:	Air-coling	Advantage:	Non-destructive Cleaning
Scanning Range:	0~100mm	Fiber Length:	1.5m
Certificates:	CE ISO

Product Description

Specification

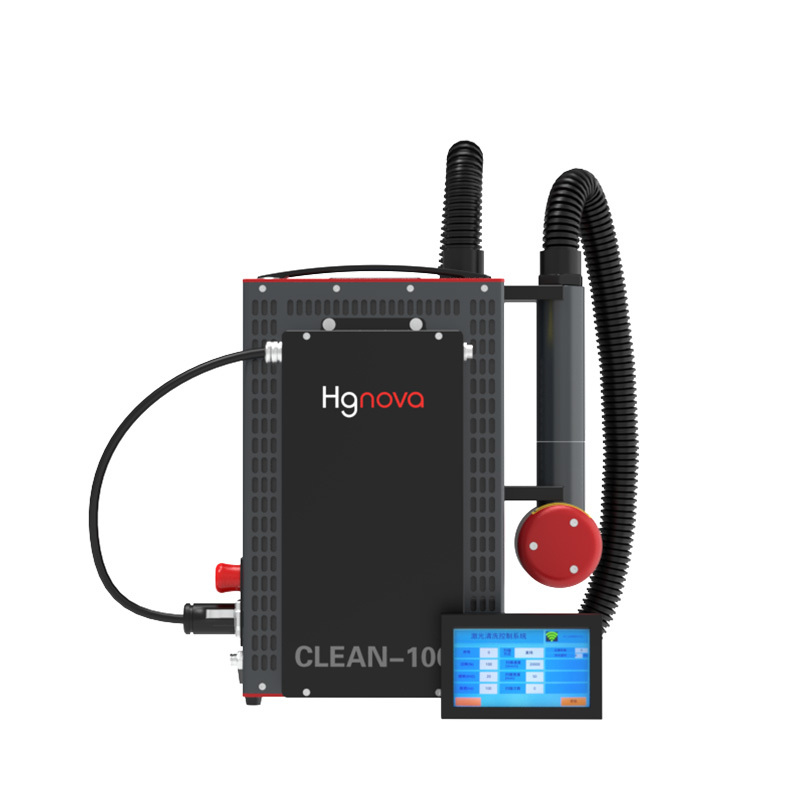

Model	CLEAN-100

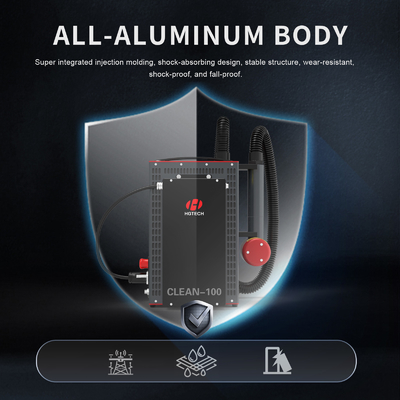

Material of Machine	Industrial-grade Aluminum
Average Laser Power	>100 W
Power Instability	<5%
Laser Operation Mode	Pulsed
Pulse Width	150–190 ns
Max. Single Pulse Energy	1.7 mJ
Beam Quality (M²)	<1.6
Power Adjustment Range	10–100% (Stepless)
Repetition Rate	20–200 kHz (Stepless)
Fiber Cable Length	1.5 m
Cooling Method	Air-cooled

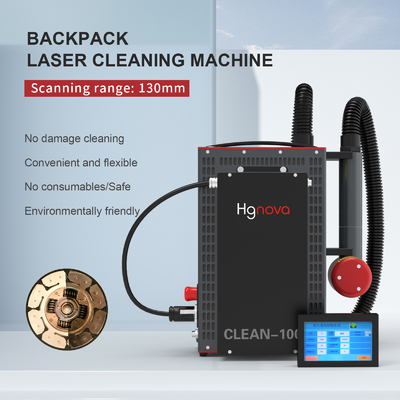

Scanning Field (L x W)	0–100 mm (Continuously adjustable); Dual-axis with 8 scanning modes
Scanning Speed	Max. 10 m/s
F-Theta Lens Focal Length	160 mm (Optional: 210/254/330/420 mm)
Depth of Focus	≈5 mm
Main Unit Weight	≈8.5 kg (without battery); ≈12 kg (with battery)
Control System	Wireless control panel
Power Supply	AC 220V±10%, 50/60 Hz (Output: DC 48V)
Power Consumption	<300 W
Operating Temperature	5°C to 40°C
Operating Humidity	≤80% RH

Wuhan HGGuanghe Technology Co., Ltd

Located in Wuhan’s East Lake High-Tech Development Zone (China (Hubei) Pilot Free Trade Zone), is a wholly-owned subsidiary of Wuhan Huagong Laser Engineering Co., Ltd., part of HGTECH (Stock Code: 000988), a leading listed national high-tech enterprise.

Backed by a leading enterprise in China's laser equipment manufacturing industry

Huagong Laser (HGTECH) specializes in high-power cutting systems, precision micro-processing solutions, and laser source exports. Awarded the National Science and Technology Progress Award, the company leads the high-end laser equipment market globally.
