Name: High-Speed 3W 5W UV Laser Engraving Machine New Cabinet Cabinet for Rotary Axis Marking Metal Wood Acrylic Leather Glass DXF
Brand: Wuhan Hgguanghe Technology Co., Ltd.
Availability: InStock

Home Products Cabinet laser marking machine

High-Speed 3W 5W UV Laser Engraving Machine New Cabinet Cabinet for Rotary Axis Marking Metal Wood Acrylic Leather Glass DXF

Product Details:

Place of Origin:	Hubei, China
Brand Name:	hgnova
Certification:	CE ISO

Contact Now

Detailed Product Description

Working Accuracy:	0.01mm	Graphic Format Supported:	AI, PLT, JPg, DXF, BMP, TIF, Dst, DXP
Laser Type:	Uv Laser	Condition:	New
Marking Depth:	0.01-0.5mm	Marking Speed:	<7000mm/s, 0-7000mm/s
Cnc Or Not:	Yes	Cooling System:	Water Cooling
Weight (kg):	130	Key Selling Points:	Easy To Operate
Warranty:	1 Year	Mode Of Operation:	Pulsed
Configuration:	Bench-top	Feature:	High-accuracy
Laser Power:	3W 5W	Laser Wavelength:	355 Nm

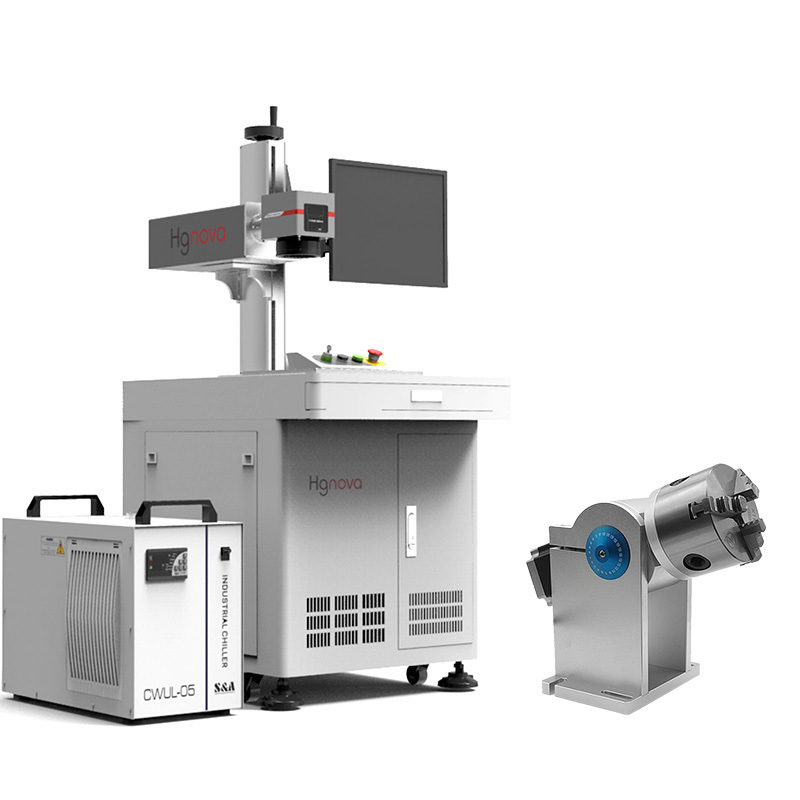

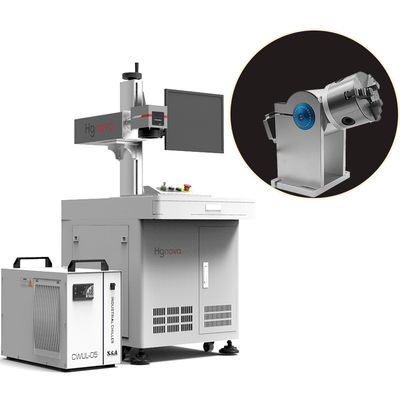

Product Name:	Cabinet UV Laser Marking Machine	Application:	Metal Plastic Jewelry Marking Engraving
Function:	Metal Plastic Marking Engraving	Working Area:	105105mm/130130mm/160*160mm
Power Supply:	2.0KW/AC220V/50 HZ	Raing Rotary Diameter:	80mm

Product Description

Specification

Model	GH-3UK	GH-5UK
Laser Power	>3w@30kHz	>5w@30kHz
Laser wavelength	355nm
Pulse Repetition Frequency	10k~150kHz
Scanning Speed	F=170mm, ≤7000 mm/s

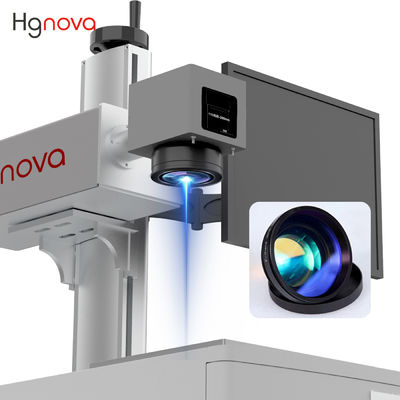

Focus Lens	F=170MM standard /F=210MM optional / F=254MM optional
Marking Range	105MMx105MM /130MMx130MM / 160MMx160MM
Cooling Method	Water
Lift shaft	Manual lifting；500MM
Power Supply	2.0KW/AC220V/50 HZ ±5%
