Name: 30W CO2 Flying Laser Printer Marking Machine for Assembly Line & Manually Coding Printing Product Line Laser Marking Machine
Brand: Wuhan Hgguanghe Technology Co., Ltd.
Availability: InStock

Home Products CO2 laser marking machine

30W CO2 Flying Laser Printer Marking Machine for Assembly Line & Manually Coding Printing Product Line Laser Marking Machine

Product Details:

Place of Origin:	Hubei, China
Brand Name:	hgnova
Certification:	ISO CE

Contact Now

Detailed Product Description

Working Accuracy:	0.001mm	Graphic Format Supported:	AI, PLT, JPg, DXF
Laser Type:	CO2	Condition:	New
Marking Depth:	0.01-0.1mm	Marking Speed:	≤7000 Mm/s
Cnc Or Not:	NO	Cooling System:	Air Cooling
Weight (kg):	80	Key Selling Points:	High Productivity
Warranty:	1 Year	Mode Of Operation:	Pulsed
Configuration:	Stand-alone	Feature:	Air-cooled
Product Name:	CO2 Flying Laser Marking Machine	Laser Source:	Co2 Laser Metal Tube
Pulse Repetition Frequency:	0~25kHz	Applicable Material:	Non-metal Materials
Laser Wavelength:	10.6um	Working Area:	7070mm/110110mm/140140mm175*175mm
File Format:	PLT,DXF,AI,JPG,PNG

Product Description

Specification

Model	GH-30C-line
Laser Type	CO2
Laser Power	30W
Laser Wavelength	10.6um
Pulse Repetition Frequency	0~25kHz
Marking Area	7070mm 110110mm 140mm140mm 175mm175mm
Marking Speed	F=160mm, ≤7000mm/s
Minimum Line Width	0.01mm
Minimum Character	0.1mm
Repeated Precision	±0.001mm
Life-span of Fiber Laser Module	100 000hours

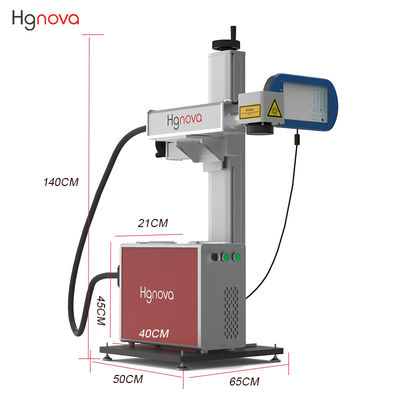

Control machine size	210×400×450mm
Marking control system	10 inch touch screen, customized control card and marking software by hglaser
Elevating Axis	Up and down: 600-1000mm, front and back 0-150mm, 0-90 degree rotation
Cooling method	Air Cooling
Power Supply	1.2KW/AC220V/50Hz，5%
Temperature of Operation Environment	10~35°C
Ambient humidity	10%＜RH＜90%(if beyond the humidity range, the air conditioning will be needed)
Oil mist, condensation	It is not allowed.

Wuhan HGGuanghe Technology Co., Ltd

Located in Wuhan’s East Lake High-Tech Development Zone (China (Hubei) Pilot Free Trade Zone), is a wholly-owned subsidiary of Wuhan Huagong Laser Engineering Co., Ltd., part of HGTECH (Stock Code: 000988), a leading listed national high-tech enterprise.

Backed by a leading enterprise in China's laser equipment manufacturing industry

Huagong Laser (HGTECH) specializes in high-power cutting systems, precision micro-processing solutions, and laser source exports. Awarded the National Science and Technology Progress Award, the company leads the high-end laser equipment market globally.
