Name: High-Accuracy 20W Fiber Laser Marking Machine New Condition Automatic Flying Laser Coding DXF PLT AI for Production Line Coding
Brand: Wuhan Hgguanghe Technology Co., Ltd.
Availability: InStock

Home Products Fiber laser marking machine

High-Accuracy 20W Fiber Laser Marking Machine New Condition Automatic Flying Laser Coding DXF PLT AI for Production Line Coding

Product Details:

Place of Origin:	Hubei, China
Brand Name:	hgnova
Certification:	ISO CE

Contact Now

Detailed Product Description

Working Accuracy:	0.01mm	Graphic Format Supported:	PLT, DXF, AI, JPg
Laser Type:	Fiber Laser	Condition:	New
Marking Depth:	0.01-0.1mm	Marking Speed:	≤7000 Mm/s
Cooling System:	Air Cooling	Weight (kg):	80
Key Selling Points:	Automatic	Warranty:	1 Year
Mode Of Operation:	Pulsed	Configuration:	Stand-alone
Feature:	Air-cooled	Laser Power:	20W
Pulse Repetition Frequency:	30~60kHz	Product Name:	Flying Fiber Laser Marking Machine
Laser Source:	Raycus	Application:	Print Expiry Date Batch Number
Applicable Material:	Metal Materials PVC HEPE Aluminum Rubber Plastic	Laser Wavelength:	1064nm
File Format:	PLT,DXF,AI,JPG,PNG

Product Description

Specification

Model	GH-20F-line
Laser Type	Fiber Laser
Laser Power	20W
Laser Wavelength	1064nm
Pulse Repetition Frequency	30~60kHz
Marking Area	7070mm 110110mm 140mm140mm 175mm175mm
Marking Speed	F=160mm, ≤7000mm/s
Minimum Line Width	0.01mm
Minimum Character	0.1mm
Repeated Precision	±0.001mm
Life-span of Fiber Laser Module	100 000hours

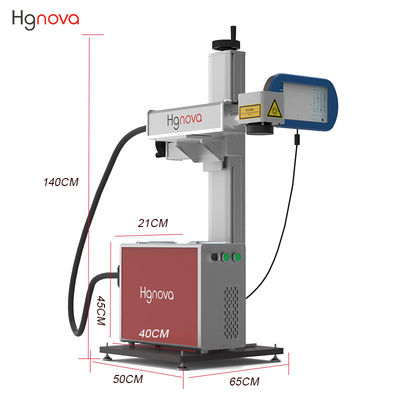

Control machine size	210×400×450mm
Marking control system	10 inch touch screen, customized control card and marking software by hglaser

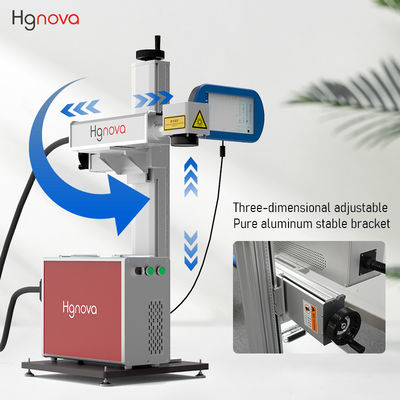

Elevating Axis	Up and down: 600-1000mm, front and back 0-150mm, 0-90 degree rotation
Cooling method	Air Cooling
Power Supply	1KW/AC220V/50Hz，5%
Temperature of Operation Environment	10~35°C
Ambient humidity	10%＜RH＜90%(if beyond the humidity range, the air conditioning will be needed)
Oil mist, condensation	It is not allowed.
