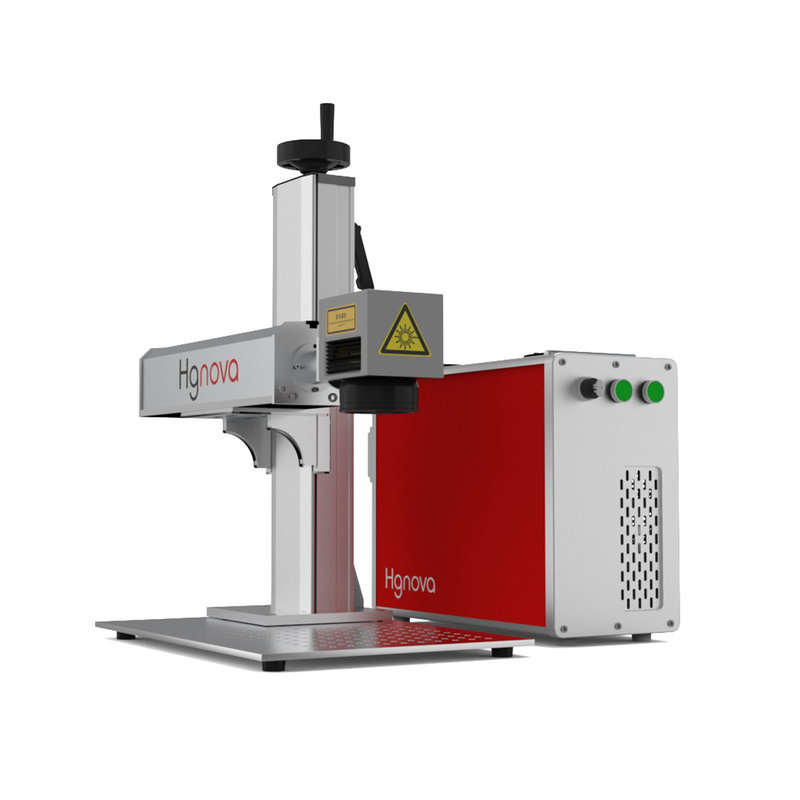

Name: Portable Desktop Fiber Laser Marking Machine 20W 30W 50W for Plastic Metal Engraving Supports DXF PLT BMP AI Graphics
Brand: Wuhan Hgguanghe Technology Co., Ltd.
Availability: InStock

Home Products Fiber laser marking machine

Portable Desktop Fiber Laser Marking Machine 20W 30W 50W for Plastic Metal Engraving Supports DXF PLT BMP AI Graphics

Product Details:

Place of Origin:	Hubei, China

Contact Now

Detailed Product Description

Working Accuracy:	0.01mm	Graphic Format Supported:	AI, JPg, PLT, BMP, DXF, TIF
Laser Type:	Fiber Laser	Condition:	New
Marking Depth:	0.01-0.5mm	Marking Speed:	≤7000 Mm/s
Cnc Or Not:	NO	Cooling System:	Air Cooling
Control Software:	EzCad 2 / LightBurn	Weight (kg):	32
Key Selling Points:	High-accuracy	Warranty:	1 Year
Mode Of Operation:	Pulsed	Configuration:	Bench-top
Feature:	Air-cooled	Applicable Material:	Metal Materials
Laser Source:	Raycus	Laser Wavelength:	1064 Nm
Marking Material:	Metal Jewelry Silver Gold	Lifespan Of Laser Device:	100000 Hours
Power Supply:	110V/220V 10% 50Hz/60Hz	Color:	Red

Model	SMART
Laser type	Fiber
Available Power	20W/30W/50W
Laser Source	Raycus
Laser Wavelength	1064nm
Marking Speed	F=160mm,≤5000 mm/s
Max. Engraving Depth	0.002 in. (0.04 mm) on a single pass
Available Working Area	7070mm/110110mm/175175mm/200200mm
Feature	Manual focus
Minimum Marking Line Width	0.06mm(depend on material)@F=160mm
Minimum Character Height	0.2mm@F=160mm

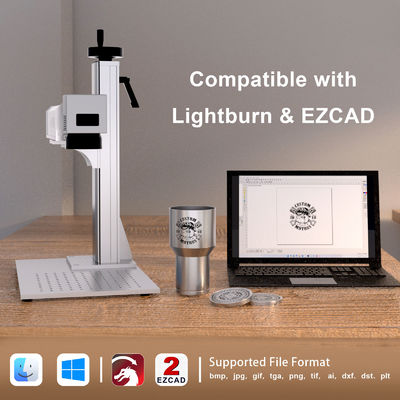

Operating Software	EzCad2 for Windows XP, 7, 8, or 10 (32/64 bit)
Supported Image Formats	ai, .bmp,.dx,.dxf,.gif,.jpg,.plt,.png,.tga,.tif
