Name: 800W 3-in-1 Mini Laser Welder Handheld Air-Cooled Fiber Laser for Metal Stainless Steel & Aluminum New Condition
Brand: Wuhan Hgguanghe Technology Co., Ltd.
Availability: InStock

Home Products Laser Welding Machine

800W 3-in-1 Mini Laser Welder Handheld Air-Cooled Fiber Laser for Metal Stainless Steel & Aluminum New Condition

Product Details:

Place of Origin:	Hubei, China

Contact Now

Detailed Product Description

Cooling Type:	Air-Cooling	Condition:	New

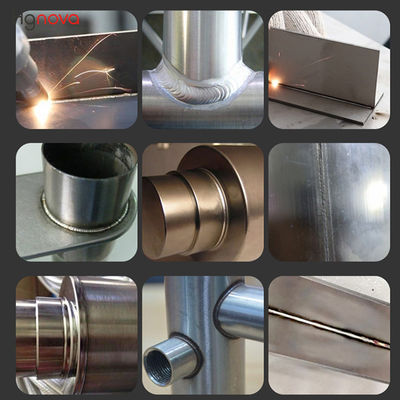

Applicable Material:	Stainless Steel, Metal, Aluminum, Carbon Steel, Steel, Brass	Laser Type:	Fiber Laser
Output Power:	800W	Usage:	Metal Stainless Steel Aluminum Welding
Welding Mode:	Continuous, Pulse	Welding Speed:	/
Warranty:	1 Year	Weight (kg):	30

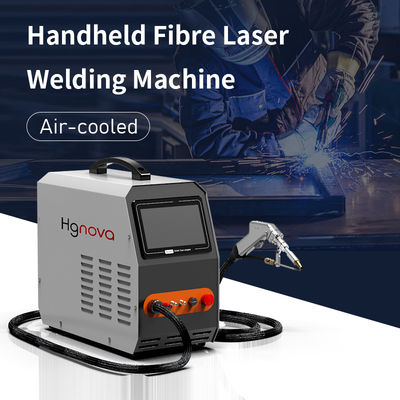

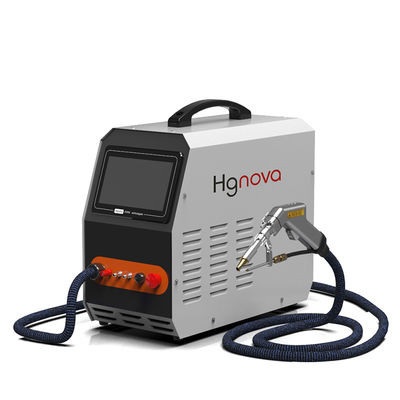

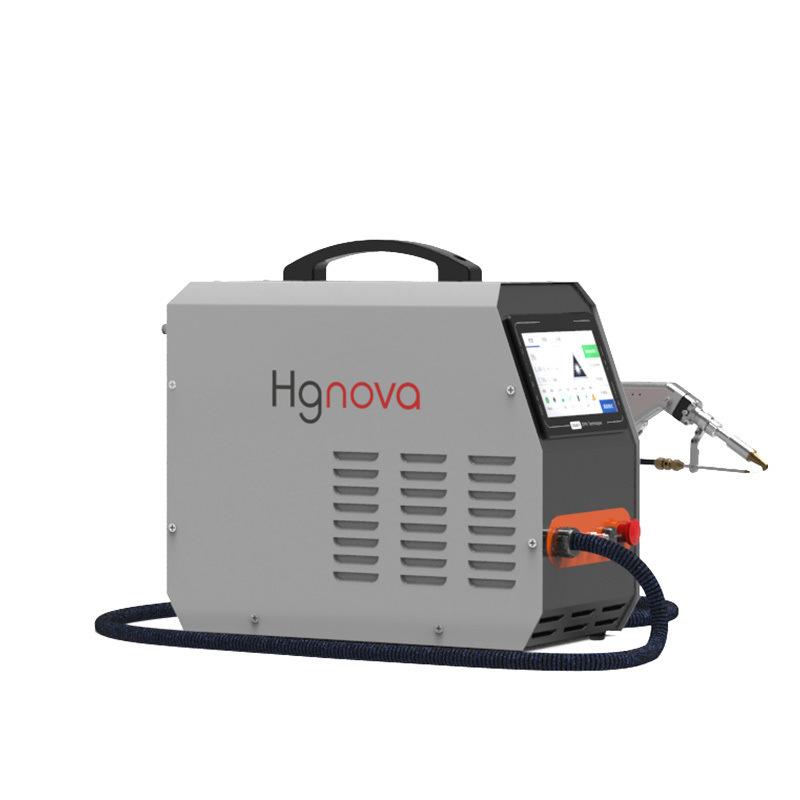

Key Selling Points:	Easy To Operate	Product Name:	Handheld Fiber Laser Welding Machine
Function:	Welding Cleaning Cutting Metal Materials	Cooling System:	Air Cooling
Advantage:	Multifuctional	Laser Wavelength:	1080±10nm
Power Supply:	220VAC/50Hz/60Hz

Product Description

Specification

Model	EW-800R
Laser Power	800W
Working Mode	Continuous / Modulated / Pulsed / Line Array / Timed
Laser Wavelength	1080nm±10nm
Power Stability	<5%
Fiber Length	Standard 5±0.5 m (Optional 10 m)
Alignment Laser Wavelength (nm)	650 nm
Laser Response Time	<10 μs
Cooling Method	Air Cooling
Cooling & Protection Gas	Inert Gas
Power Requirements	220 V AC, 50/60 Hz
Total Power Consumption	≤4.0 kW
Operating Temperature Range (°C)	-10°C to +40°C
Operating Humidity Range (%)	≤85% RH
Net Weight	<30 kg

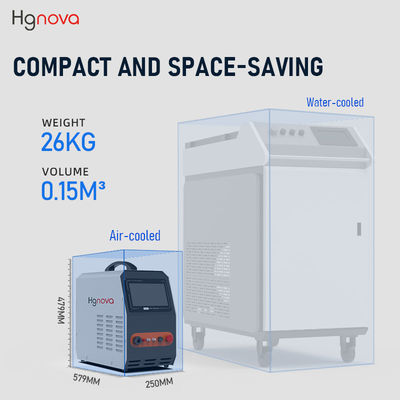

Cabinet Dimensions	250 × 520 × 490 mm
Red Beam Indicator	Built-in Coaxial Red Laser

Wuhan HGGuanghe Technology Co., Ltd

Located in Wuhan’s East Lake High-Tech Development Zone (China (Hubei) Pilot Free Trade Zone), is a wholly-owned subsidiary of Wuhan Huagong Laser Engineering Co., Ltd., part of HGTECH (Stock Code: 000988), a leading listed national high-tech enterprise.

Backed by a leading enterprise in China's laser equipment manufacturing industry

Huagong Laser (HGTECH) specializes in high-power cutting systems, precision micro-processing solutions, and laser source exports. Awarded the National Science and Technology Progress Award, the company leads the high-end laser equipment market globally.
