Name: Handheld Air-Cooled Laser Welding Machine 800W 1200W 4 in 1 Laser Welder
Brand: Wuhan Hgguanghe Technology Co., Ltd.
Availability: InStock

Home Products Laser Welding Machine

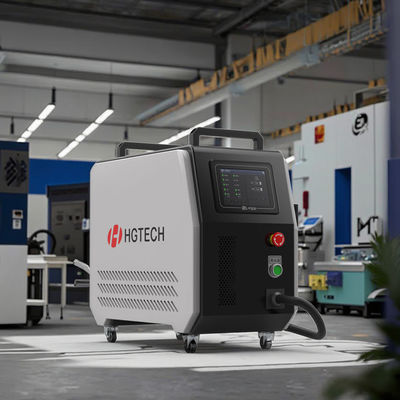

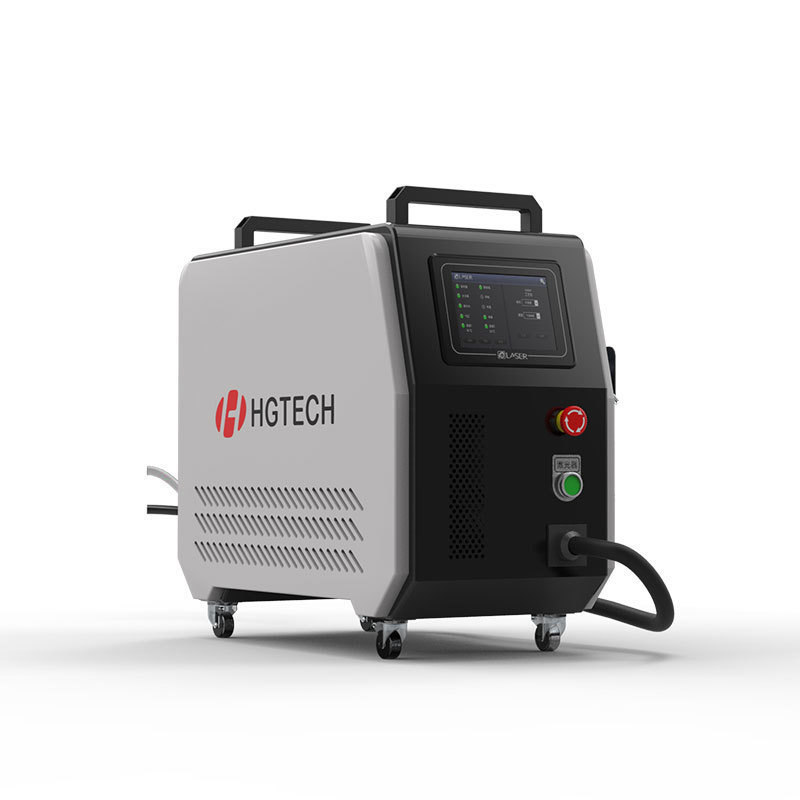

Handheld Air-Cooled Laser Welding Machine 800W 1200W 4 in 1 Laser Welder

Product Details:

Place of Origin:	Hubei, China
Brand Name:	hgnova

Contact Now

Detailed Product Description

Cooling Type:	Air-Cooling	Condition:	New
Applicable Material:	Stainless Steel, Metal, Aluminum, Carbon Steel, Steel, Copper, Titanium, Brass	Laser Type:	Fiber Laser
Output Power:	1200W	Usage:	Cutting/Welding/Cleaning Metal
Welding Mode:	Continuous	Welding Speed:	10-30mm/s
Wavelength:	1064nm	Warranty:	1 Year
Weight (kg):	60	Key Selling Points:	Easy To Operate
Product Name:	4 In1 Laser Welding Machine	Application:	Cleaning Welding Cutting Metal
Laser Power:	800W / 1200W	Cooling System:	Air Cooling System
Laser Source:	Raycus / BWT	After-sales Service Provided:	7*24 Service

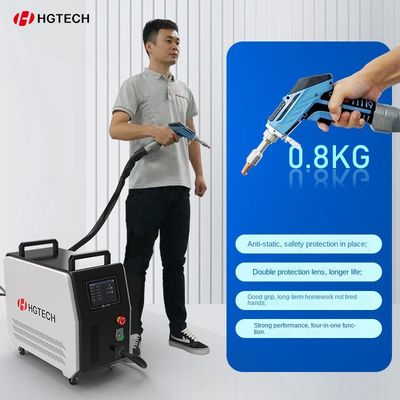

Welding Head:	Raytools Optional	Welding Materials:	Stainless Steel Carbon Steel Alluminum Etc

Product Description

Specification

Technical Specifications of 1200W Air-Cooled Fiber Laser
Parameter	Model EW-1200R

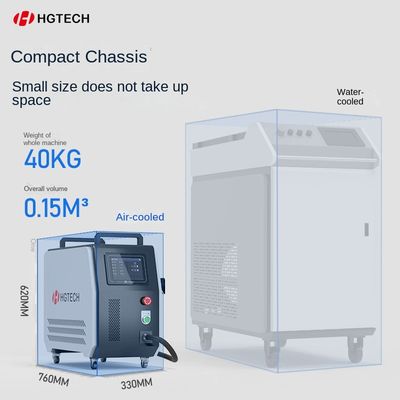

Dimensions (L × W × H)	570 × 290 × 620 mm
Package Dimensions (L × W × H)	720 × 720 × 800mm; Weight 96kg
Maximum Laser Output Power	1200 W
Output Power Adjustment Range	10% - 100%
Long-Term Power Stability	< ±2%
Wavelength	1070 nm
Fiber Length	10 m
Power Supply Requirement	220V ±5%, 50Hz
Total Power Consumption	Max. 4.5 kW
Red Aiming Beam	Integrated coaxial red light
Cooling Method	Air-cooled
Operating Ambient Temperature	10°C - 40°C
Operating Ambient Humidity	< 70% RH
Warranty	1 year; 7/24 Remote Technical Services

Wuhan HGGuanghe Technology Co., Ltd

Located in Wuhan’s East Lake High-Tech Development Zone (China (Hubei) Pilot Free Trade Zone), is a wholly-owned subsidiary of Wuhan Huagong Laser Engineering Co., Ltd., part of HGTECH (Stock Code: 000988), a leading listed national high-tech enterprise.

Backed by a leading enterprise in China's laser equipment manufacturing industry

Huagong Laser (HGTECH) specializes in high-power cutting systems, precision micro-processing solutions, and laser source exports. Awarded the National Science and Technology Progress Award, the company leads the high-end laser equipment market globally.
