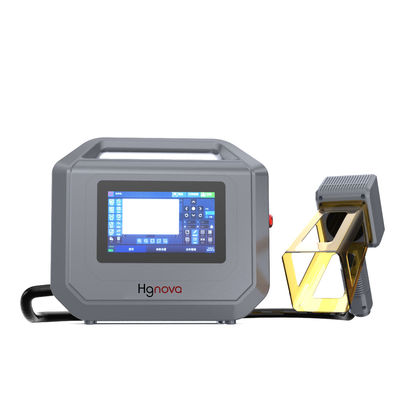

High Performance 20W AI DXF PLT Mini Portable Handheld Metal Laser Marking Machine

Product Details:

Place of Origin:	Hubei, China
Brand Name:	Hgnova

Contact Now

Detailed Product Description

Working Accuracy:	0.01mm	Graphic Format Supported:	AI, PLT, JPg, JPEG, DXF, Hpgl
Laser Type:	Fiber Laser	Condition:	New
Marking Depth:	0.01-0.1mm	Marking Speed:	≤7000mm/s
Cooling System:	Air Cooling	Weight (kg):	7.5
Key Selling Points:	Easy To Operate	Warranty:	1
Mode Of Operation:	Pulsed	Configuration:	Hand-held
Feature:	Air-cooled	Product Name:	Handheld Fiber Laser Marking Machine
Applicable Material:	Metal Materials	Function:	Marking Logo Metal
Working Area:	110110mm/150150mm/175*175mm	Cooling System:	Air Coolilng

Product Description

Specification

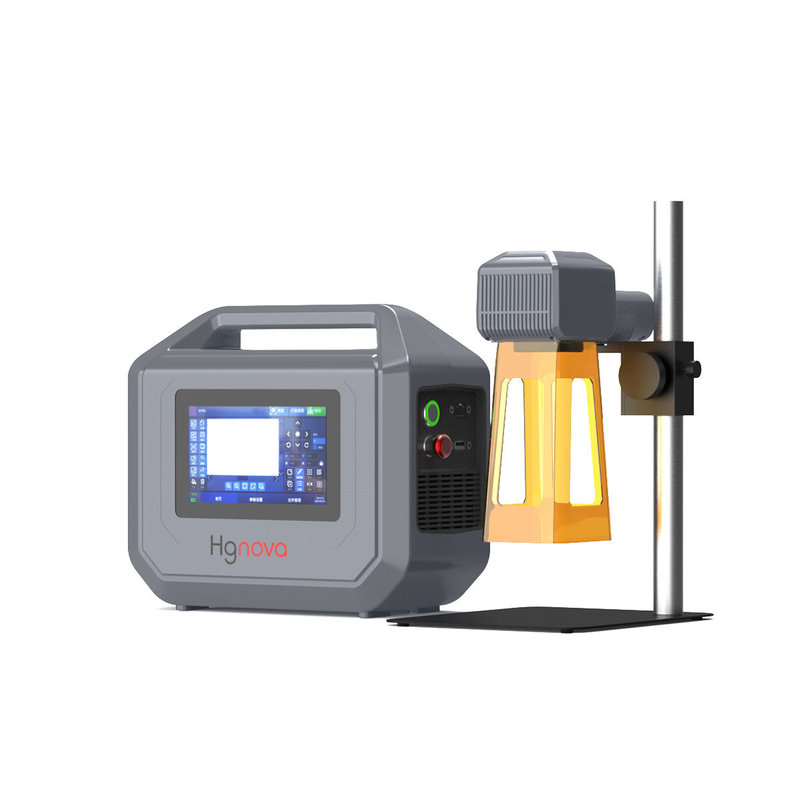

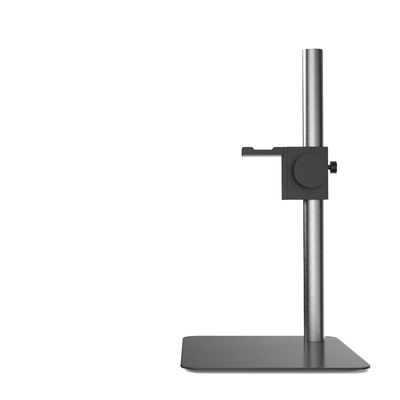

Model	M-Box( without battery) with Tabletop Stand
Output power	20W
Marking range	110x110mm standard / 150x150mm optional /175x175mm optional
Laser wavelength	1064nm
Marking speed	＜7000mm/s
operating system	Linux system
Marking line type	Dot matrix and vector integrated machine
Line width	0.03mm
Repeat positioning accuracy	0.01mm
Positioning method	Red light positioning. focusing
Number of character lines	Any line within the effective marking range
Printing speed	800 characters (depending on the material and printing content)
Barcode	CODE39、CODE128、CODE126、QR
power supply	110V/220VAC
Machine power consumption	＜250W
Whole machine operating temperature	0-40℃

Wuhan HGGuanghe Technology Co., Ltd

Located in Wuhan’s East Lake High-Tech Development Zone (China (Hubei) Pilot Free Trade Zone), is a wholly-owned subsidiary of Wuhan Huagong Laser Engineering Co., Ltd., part of HGTECH (Stock Code: 000988), a leading listed national high-tech enterprise.

Backed by a leading enterprise in China's laser equipment manufacturing industry

Huagong Laser (HGTECH) specializes in high-power cutting systems, precision micro-processing solutions, and laser source exports. Awarded the National Science and Technology Progress Award, the company leads the high-end laser equipment market globally.
