Name: 30W Portable Handheld Laser Fiber Marking Machine Mini Small Fiber Optic for Lettering Coding Supports DXF PLT BMP-Brand New
Brand: Wuhan Hgguanghe Technology Co., Ltd.
Availability: InStock

Home Products Handheld laser marking machine

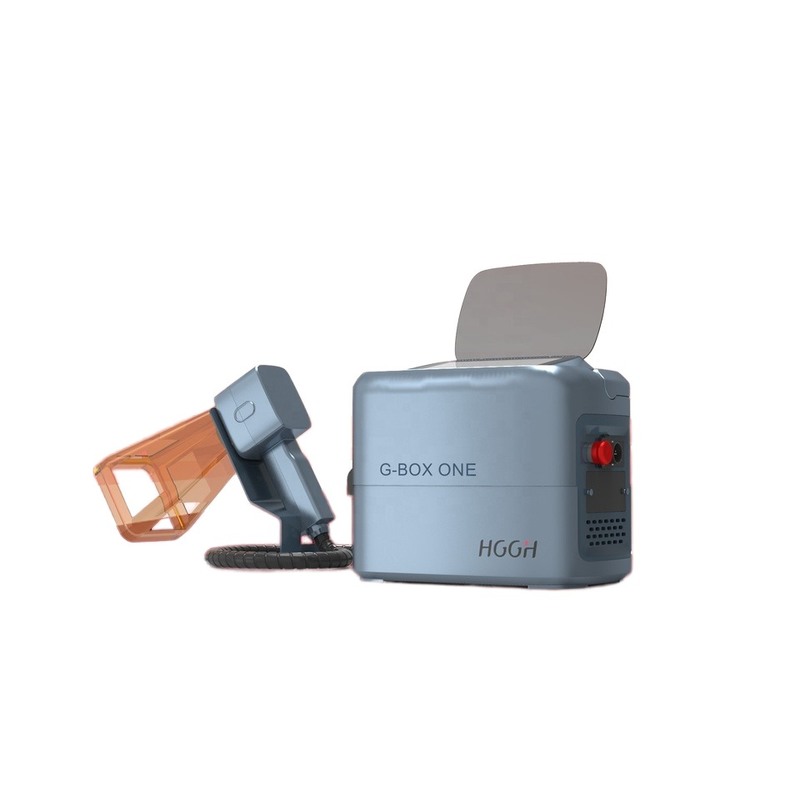

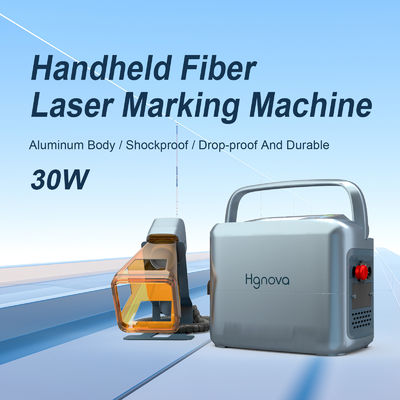

30W Portable Handheld Laser Fiber Marking Machine Mini Small Fiber Optic for Lettering Coding Supports DXF PLT BMP-Brand New

Product Details:

Place of Origin:	Hubei, China
Certification:	CE ISO FCC

Contact Now

Detailed Product Description

Working Accuracy:	0.003	Graphic Format Supported:	AI, PLT, JPg, JPEG, DXF, BMP
Laser Type:	Fiber Laser	Condition:	New
Marking Depth:	0.01-0.5mm	Marking Speed:	0~1200mm/s, 0~1200mm/s
Cnc Or Not:	NO	Cooling System:	Air Cooling

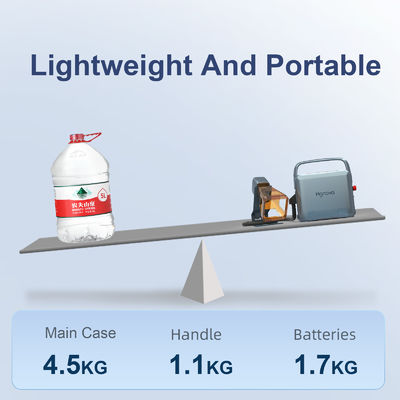

Weight (kg):	5.6	Key Selling Points:	Easy To Operate
Warranty:	1 Year	Mode Of Operation:	Pulsed
Configuration:	Mini	Feature:	Handheld
Product Name:	Portable Fiber Laser Marking Machine	Power Supply:	110V/220V 10% 50Hz/60Hz
Machine Type:	Mini Portable Laser Marker	Function:	Marking Logo Metal
Laser Wavelength:	1064nm	Working Area:	110*110mm

Product Description

Specification

Model	G-Box-One
Laser Power	30W
Body Material	ABS
Laser Wavelength	1064nm
Marking Speed	≤1200mm/s

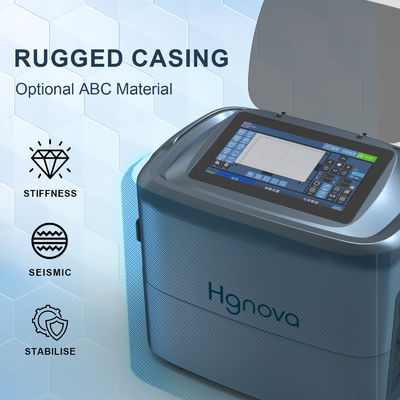

LCD Display	7-inch touch screen
Cooling Method	Air Cooling
Focusing Lens	183.5mm
Minimum Line Width	0.0012mm
Repositioning Accuracy	±0.003mm
Marking Area	110*110mm
Positioning Method	Red Beam Indicator
Programmable Text Rows	Dynamic Multi-row Alignment (within marking area)
Multi-language Support	21 languages (EN/FR/ES/DE/ZH/RU/AR etc.)
Supported File Formats	BMP, DXF, HPGL, JPEG, PLT
Barcode Support	CODE39, CODE128, CODE126, QR Code, ZhenCode (Optional)
Power Consumption	AC 220V/50Hz
Packaging Dimensions (L×W×H)	610×250×345mm
Operating Conditions	- Temperature: 0°C to 45°C - Humidity: <95% RH (non-condensing) - Vibration Free

Wuhan HGGuanghe Technology Co., Ltd

Located in Wuhan’s East Lake High-Tech Development Zone (China (Hubei) Pilot Free Trade Zone), is a wholly-owned subsidiary of Wuhan Huagong Laser Engineering Co., Ltd., part of HGTECH (Stock Code: 000988), a leading listed national high-tech enterprise.

Huagong Laser is a leading enterprise in China's laser equipment manufacturing industry

Huagong Laser (HGTECH) specializes in high-power cutting systems, precision micro-processing solutions, and laser source exports. Awarded the National Science and Technology Progress Award, the company leads the high-end laser equipment market globally.
