Name: 20W Small Handheld Laser Fiber Marking Machine Portable Mini Fiber Optic Engraving for Lettering Coding Supports DXF PLT BMP
Brand: Wuhan Hgguanghe Technology Co., Ltd.
Availability: InStock

Home Products Handheld laser marking machine

20W Small Handheld Laser Fiber Marking Machine Portable Mini Fiber Optic Engraving for Lettering Coding Supports DXF PLT BMP

Product Details:

Place of Origin:	Hubei, China
Brand Name:	hgnova
Certification:	CE ISO FCC

Contact Now

Detailed Product Description

Working Accuracy:	0.003mm	Graphic Format Supported:	BMP, DXF, Hpgl, PLT, JPEG
Laser Type:	Fiber Laser	Condition:	New
Marking Depth:	0.01-0.5mm	Marking Speed:	≤1200 Mm/s
Cnc Or Not:	NO	Cooling System:	Air Cooling
Control Software:	4701	Weight (kg):	5.6
Key Selling Points:	Easy To Operate	Warranty:	1 Year
Mode Of Operation:	Pulsed	Configuration:	Mini
Feature:	Handheld	Product Name:	Handheld Fiber Laser Marking Machine
Power Supply:	110V/220V 10% 50Hz/60Hz	Applicable Material:	Metal Aluminum Stainless Steel
Machine Type:	Mini Portable Laser Marker	Laser Wavelength:	1064mm
Working Area:	110*110mm

Product Description

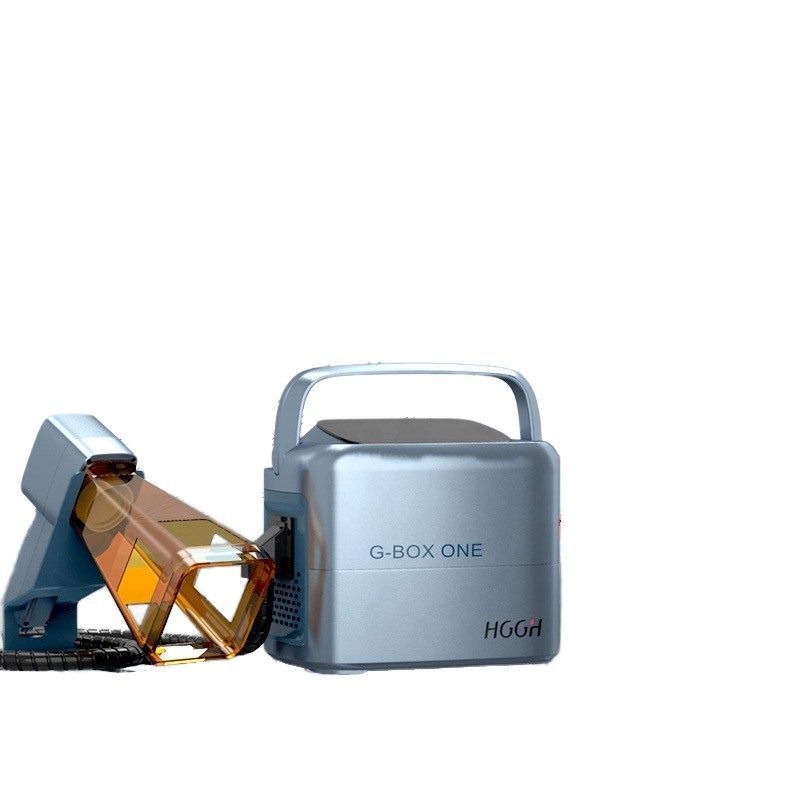

Model	G-Box-One
Laser Power	20W

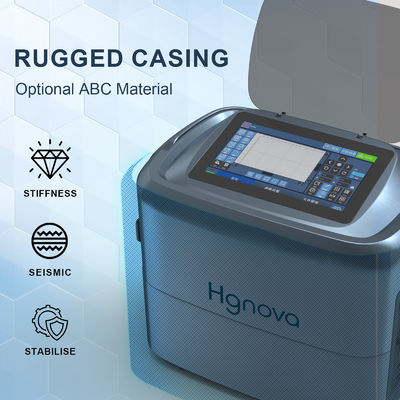

Body Material	ABS
Laser Wavelength	1064nm
Marking Speed	≤1200mm/s
LCD Display	7-inch touch screen
Cooling Method	Air Cooling
Focusing Lens	183.5mm
Minimum Line Width	0.0012mm
Repositioning Accuracy	±0.003mm
Marking Area	110*110mm
Positioning Method	Red Beam Indicator
Programmable Text Rows	Dynamic Multi-row Alignment (within marking area)
Multi-language Support	21 languages (EN/FR/ES/DE/ZH/RU/AR etc.)
Supported File Formats	BMP, DXF, HPGL, JPEG, PLT
Barcode Support	CODE39, CODE128, CODE126, QR Code, ZhenCode (Optional)
Power Consumption	AC 220V/50Hz
Packaging Dimensions (L×W×H)	610×250×345mm
Operating Conditions	- Temperature: 0°C to 45°C - Humidity: <95% RH (non-condensing) - Vibration Free
