Name: Handheld 20W Fiber Laser Marker for Metal and Hard Plastic New Condition Supports DXF PLT BMP Graphic Formats
Brand: Wuhan Hgguanghe Technology Co., Ltd.
Availability: InStock

Home Products Handheld laser marking machine

Handheld 20W Fiber Laser Marker for Metal and Hard Plastic New Condition Supports DXF PLT BMP Graphic Formats

Product Details:

Place of Origin:	Hubei, China

Contact Now

Detailed Product Description

Working Accuracy:	0.01mm	Graphic Format Supported:	BMP, DXF, PLT, JPEG, Hpgl
Laser Type:	Fiber Laser	Condition:	New
Marking Depth:	0.01-0.2mm	Marking Speed:	3000-7000 Mm/s
Cooling System:	Air Cooling	Weight (kg):	6.8
Key Selling Points:	Easy To Operate	Warranty:	1 Year
Mode Of Operation:	Pulsed	Configuration:	Mini
Feature:	Air-cooled	Product Name:	Handheld Fiber Laser Marking Machine
Laser Source:	Raycus Laser Source	Application:	Print Expiry Date Batch Number
Laser Wavelength:	10640nm	Working Area:	8080mm(standard)/13080mm(optional)
Power Supply:	220V/50Hz

Product Description

Specification

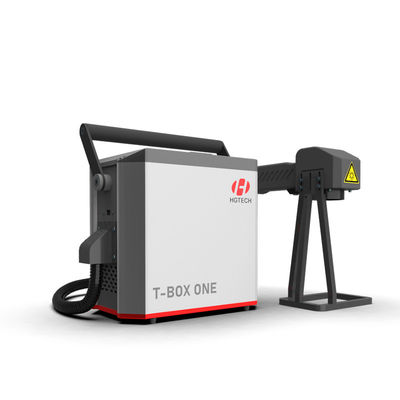

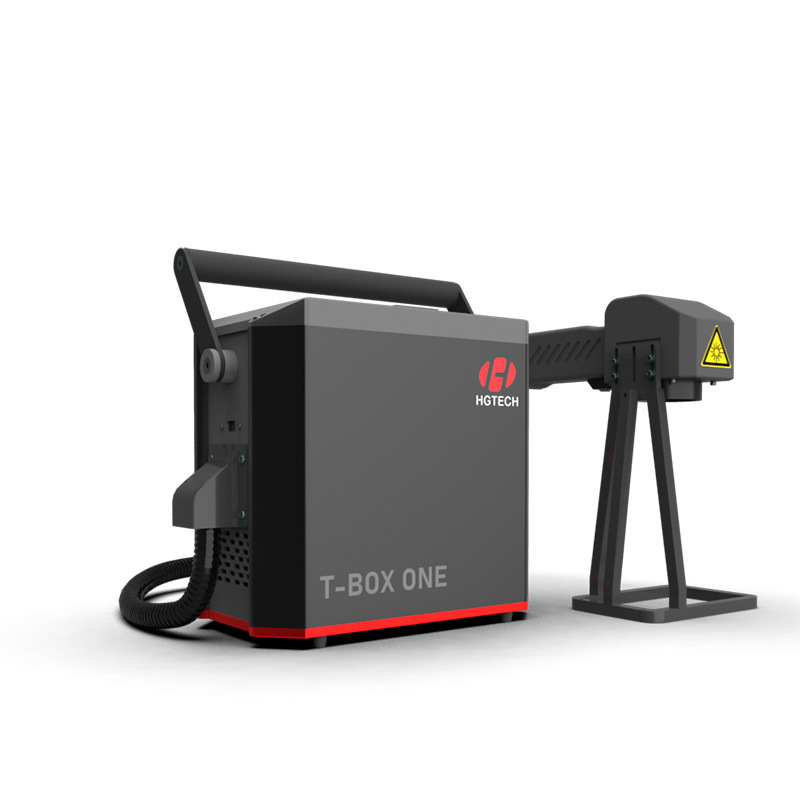

Product Model	T-BOX ONE
Chassis Material	Industrial-grade aluminum alloy
Laser Source	RAYCUS Fiber Laser
Laser Wavelength	1064 nm
Actual Output Power	≥20W
Marking Speed	≤1200 mm/s
Control System	8-inch Touchscreen Controller
Cooling System	Ambient Air Cooling
Focusing Lens	F=165 mm
Min. Line Width	0.05 mm
Repositioning Accuracy	±0.003 mm
Marking Field	80x80 mm (Standard)/ 130x80 mm (Customizable)

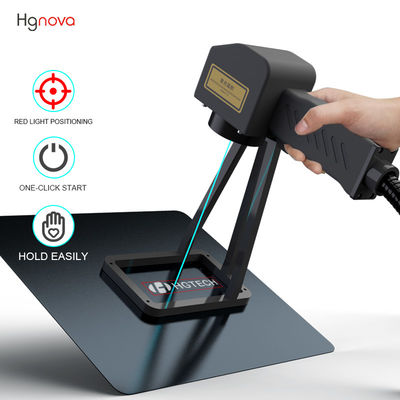

Positioning Method	Red Beam Indicator
Character Lines	Unlimited within marking area
Line Speed	0-130 m/min
Languages	EN/FR/ES/DE/CN/RU/AR + 20+ others
OS	Linux
File Formats	BMP, DXF, HPGL,JPEG, PLT
Barcode Support	Code 39, Code 128, Code 126, QR，Zhima Code (Optional)
Power Supply	Standard: 220V/50Hz AC
Power Consumption	75W

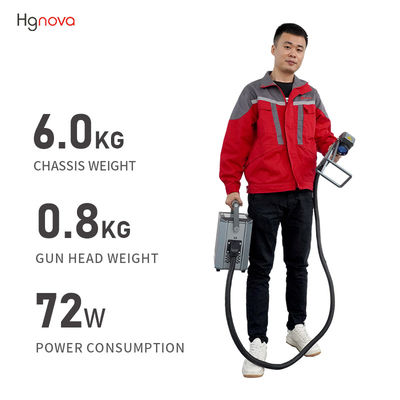

Net Weight	• Chassis: 6 kg • Laser head: 0.8 kg • Gross weight (packaged): 7 kg
Dimensions	• Chassis: 270×155×245 mm • Laser head: 240×100×230 mm
Environment	• Temp: 0–45°C • Humidity: ≤95% RH • Non-condensing
