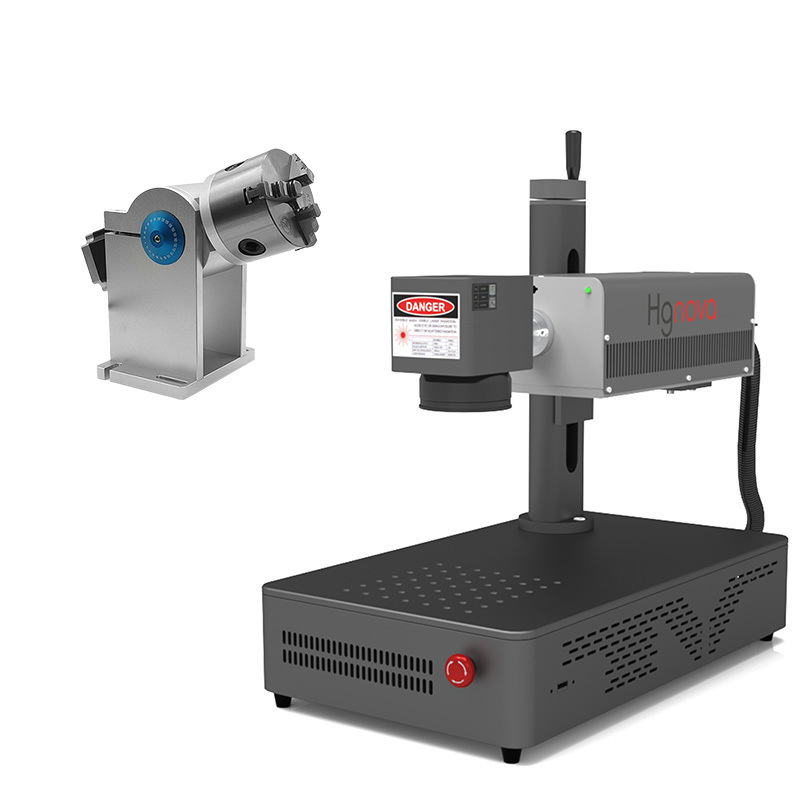

Name: Desktop UV Laser Marking Machine for Engraving Plastics Glass Metal 3W 5W Portable Laser Engraving Machine With Rotary Axis
Brand: Wuhan Hgguanghe Technology Co., Ltd.
Availability: InStock

Home Products UV laser marking machine

Desktop UV Laser Marking Machine for Engraving Plastics Glass Metal 3W 5W Portable Laser Engraving Machine With Rotary Axis

Product Details:

Place of Origin:	Hubei, China

Contact Now

Detailed Product Description

Working Accuracy:	0.06mm	Graphic Format Supported:	AI, PLT, JPg, DXF, BMP
Laser Type:	Uv Laser	Condition:	New
Marking Depth:	0.1-0.5mm	Marking Speed:	≤7000 Mm/s, ≤7000 Mm/s
Cnc Or Not:	NO	Cooling System:	Air Cooling, Air Cooling
Weight (kg):	22	Key Selling Points:	Easy To Operate
Warranty:	1 Year	Mode Of Operation:	Pulsed
Configuration:	Portable Bench-top	Feature:	High-accuracy
Product Name:	Desktop UV Laser Marking Machine	Applicable Material:	Metal Nonmetal Materials
Machine Type:	UV Laser Marker	After-sales Service Provided:	24h Online Service
Working Area:	100100mm/150150mm/175*175mm	Power Supply:	2.0KW/AC220V/50 HZ

Specification

Laser Power	3W	5W
Laser Wavelength	355nm
Pulse Repetition Frequency (PRF)	>3w@30kHz
Scanning Speed	10k~150kHz
F-Theta Lens	F=170mm,≤7000 mm/s
Working Area	100100mm/150150mm(optional)/175*175mm(optional)
Standard Marking Line Width	0.02mm (Material Dependent) @ f=170mm
Minimum Character Height	0.1mm @ f=170mm

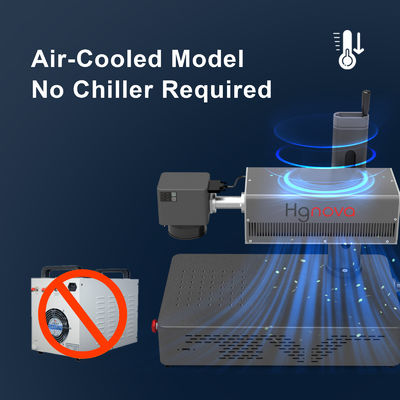

Cooling Method	Air Cooling
Height Adjustment	Manual Z-Axis Adjustment, Travel: 500mm
Total Power Consumption	600W
Power Supply	2.0kW / AC 220V (±10%) / 50 Hz
Supported File Formats	PLT, DXF, BMP...
User Interface Languages	Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Arabic, Russian, Portuguese
Operating Temperature Range	15°C ~ 35°C. Air conditioning is required if used outside this range.
Operating Humidity Range	30% ≤ RH ≤ 80%. Risk of condensation exists if operated outside this humidity range.
Machine Dimensions	500mm x 330mm x 580mm
Machine Weight	* Net Weight: 20kg * Gross Weight: 22kg
