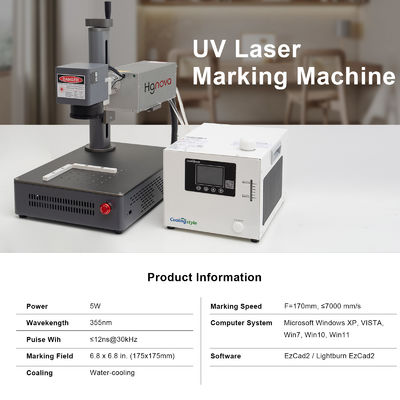

Name: High Precision 5W Water Cooling UV Laser Marking Machine New for Engraving Glass & Acrylic Supports DXF & PLT Formats
Brand: Wuhan Hgguanghe Technology Co., Ltd.
Availability: InStock

Home Products UV laser marking machine

High Precision 5W Water Cooling UV Laser Marking Machine New for Engraving Glass & Acrylic Supports DXF & PLT Formats

Product Details:

Place of Origin:	Hubei, China
Brand Name:	hgnova
Certification:	CE ISO

Contact Now

Detailed Product Description

Working Accuracy:	0.01mm	Graphic Format Supported:	AI, PLT, JPg, DXF, BMP, Dst, DXP
Laser Type:	Uv Laser	Condition:	New
Marking Depth:	0.01-0.5mm	Marking Speed:	≤7000mm/s, 0~7000mm/s
Cnc Or Not:	Yes	Cooling System:	Water Cooling
Weight (kg):	30	Key Selling Points:	High-accuracy
Warranty:	1 Year	Mode Of Operation:	Pulsed
Configuration:	Portable Bench-top	Feature:	Water-cooled
Applicable Material:	Metal Nonmetal Materials	Application:	Acrylic MDF Plastic Fabric Wood
Laser Wavelength:	355 Nm	Cooling System:	Walter Cooling
Working Area:	175*175mm

Product Description

Specification

Activate Peak Performance: Switch to Water-Cooled UV Laser Marking

More efficient heat dissipation, faster and more uniform cooling High-contrast, non-thermal marking on plastics, films & heat-sensitive substrates Ultra-fine, permanent marking with exceptional detail 24/7 continuous operation for high-volume manufacturing Ultra-stable laser output and extended system lifespan Reduced noise for a comfortable workspace

Model	GH-5UKS
Laser Output Power	5W
Laser Wavelength	355nm
Pulse Repetition Rate	10kHzto150kHz
Scanning Speed	F=170mm,≤7000 mm/s
F-Theta Lens	F=170MM standard configuration F=210MM optional F=254MM optional
Marking Field	175*175mm
Beam Spot Diameter	0.7mm
Beam Circularity	＞90%
Cooling Method	water
Z-Axis Focus Adjustment Range	500mm; hand-operated
Power Supply Requirement	2.0KW/AC220V/50HZ 5%

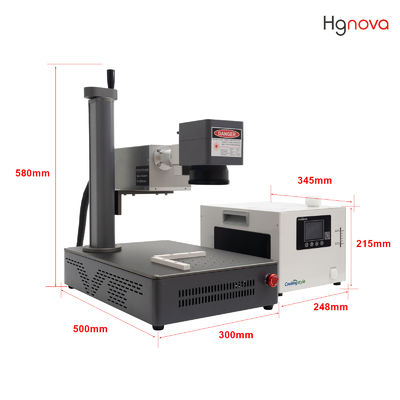

Chiller Dimensions	345X248X215MM
Chiller Weight	Net weight 10KG/total weight 11.5KG
Main Unit Dimensions	500x330x580MM
Main Unit Weight	Net 20KG/total 22KG

Wuhan HGGuanghe Technology Co., Ltd

Located in Wuhan’s East Lake High-Tech Development Zone (China (Hubei) Pilot Free Trade Zone), is a wholly-owned subsidiary of Wuhan Huagong Laser Engineering Co., Ltd., part of HGTECH (Stock Code: 000988), a leading listed national high-tech enterprise.

Backed by a leading enterprise in China's laser equipment manufacturing industry

Huagong Laser (HGTECH) specializes in high-power cutting systems, precision micro-processing solutions, and laser source exports. Awarded the National Science and Technology Progress Award, the company leads the high-end laser equipment market globally.
