High Accuracy 3W 5W UV Laser Marking Machine New Water Cooling System for Engraving Glass & Acrylic Supports DXF Format

Product Details:

Place of Origin:	Hubei, China
Brand Name:	hgnova
Certification:	CE ISO

Contact Now

Detailed Product Description

Working Accuracy:	0.06	Graphic Format Supported:	AI, PLT, JPg, DXF, BMP, Dst, DXP
Laser Type:	Uv Laser	Condition:	New
Marking Depth:	0.01-0.5mm	Marking Speed:	≤7000 Mm/s
Cnc Or Not:	Yes	Cooling System:	Water Cooling
Weight (kg):	30	Key Selling Points:	High-accuracy
Warranty:	1 Year	Mode Of Operation:	Pulsed
Configuration:	Portable Bench-top	Feature:	Water-cooled
Laser Power:	3W 5W	Keywords:	UV Laser Markng Machine
Applicable Material:	Metal Nonmetal Materials	Machine Type:	Desktop Laser Marker
After-sales Service Provided:	24-hour Online Customer Service	Working Area:	100100mm-150150mm -175*175mm Optional

Activate Peak Performance: Switch to Water-Cooled UV Laser Marking

More efficient heat dissipation, faster and more uniform cooling High-contrast, non-thermal marking on plastics, films & heat-sensitive substrates Ultra-fine, permanent marking with exceptional detail 24/7 continuous operation for high-volume manufacturing Ultra-stable laser output and extended system lifespan Reduced noise for a comfortable workspace

Model	GH-3UKS
33Laser Output Power	3W 5W
Laser Wavelength	355nm
Pulse Repetition Rate	10kHzto150kHz
Scanning Speed	F=170mm,≤7000 mm/s
F-Theta Lens	F=170MM standard configurationF=210MM optional F=254MM optional
Marking Field	100100mm/150150mm/175*175mm optional
Beam Spot Diameter	0.7mm
Beam Circularity	＞90%
Cooling Method	water
Z-Axis Focus Adjustment Range	500mm; hand-operated
Power Supply Requirement	2.0KW/AC220V/50HZ 5%

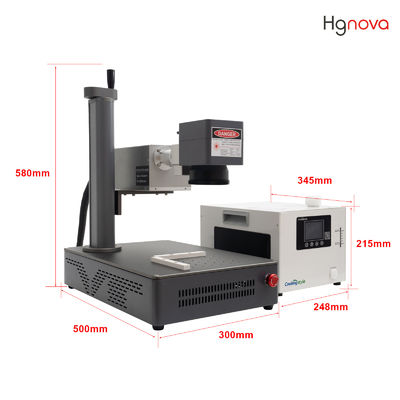

Chiller Dimensions	345X248X215MM
Chiller Weight	Net weight 10KG/total weight 11.5KG
Main Unit Dimensions	500x330x580MM
