Name: Desktop 3W Water Cooling UV Laser Marking Machine Good Price Leaf Metal Wood Plastic UV Laser Engraving Machine
Brand: Wuhan Hgguanghe Technology Co., Ltd.
Availability: InStock

Home Products UV laser marking machine

Desktop 3W Water Cooling UV Laser Marking Machine Good Price Leaf Metal Wood Plastic UV Laser Engraving Machine

Product Details:

Place of Origin:	Hubei, China
Brand Name:	hgnova
Certification:	CE ISO

Contact Now

Detailed Product Description

Working Accuracy:	0.06	Graphic Format Supported:	AI, PLT, JPg, DXF, BMP, DXP, Dst
Laser Type:	Uv Laser	Condition:	New
Marking Depth:	0.01-0.5mm	Marking Speed:	≤7000 Mm/s
Cnc Or Not:	Yes	Cooling System:	Water Cooling
Weight (kg):	30	Key Selling Points:	Easy To Operate
Warranty:	1 Year	Mode Of Operation:	Pulsed
Configuration:	Portable Bench-top	Feature:	Water-cooled
Keywords:	UV Laser Markng Machine	Machine Type:	Desktop Laser Marker
Function:	Marking Logo Metal Non Metal	After-sales Service Provided:	24-hour Online Customer Service
Laser Wavelength:	355nm	Working Area:	175*175mm
Cooling System:	Walter Cooling

Product Description

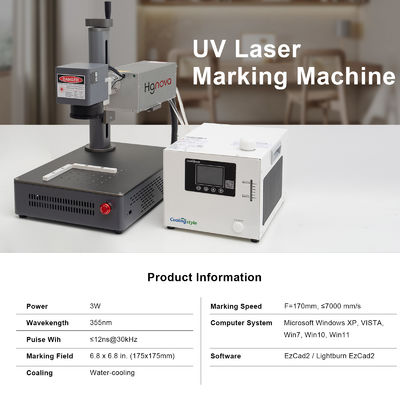

Specification

Model	GH-3UKS
33Laser Output Power	3W
Laser Wavelength	355nm
Pulse Repetition Rate	10kHzto150kHz
Scanning Speed	F=170mm,≤7000 mm/s
F-Theta Lens	F=170MM standard configurationF=210MM optional F=254MM optional
Marking Field	175*175mm
Beam Spot Diameter	0.7mm
Beam Circularity	＞90%
Cooling Method	water
Z-Axis Focus Adjustment Range	500mm; hand-operated
Power Supply Requirement	2.0KW/AC220V/50HZ 5%
Chiller Dimensions	345X248X215MM
Chiller Weight	Net weight 10KG/total weight 11.5KG

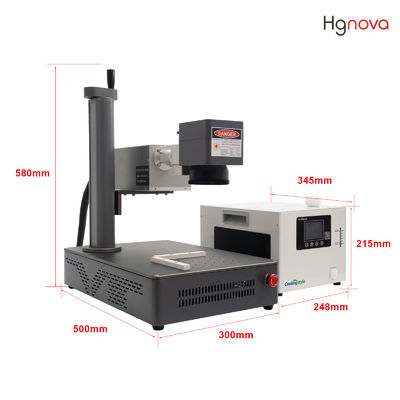

Main Unit Dimensions	500x330x580MM
