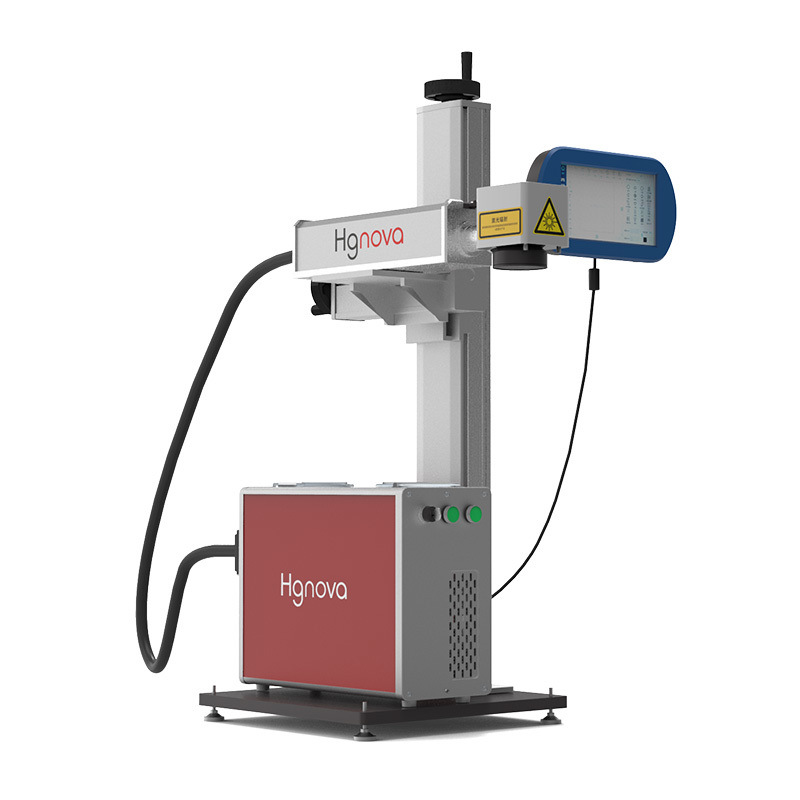

Name: 3W UV Flying Laser Marking Machine New Condition Automatic Assembly Line for Laser Printing Equipment Supports DXF PLT AI
Brand: Wuhan Hgguanghe Technology Co., Ltd.
Availability: InStock

Home Products UV laser marking machine

3W UV Flying Laser Marking Machine New Condition Automatic Assembly Line for Laser Printing Equipment Supports DXF PLT AI

Product Details:

Place of Origin:	Hubei, China
Brand Name:	hgnova
Certification:	ISO CE

Contact Now

Detailed Product Description

Working Accuracy:	0.001mm	Graphic Format Supported:	AI, PLT, JPg, DXF
Laser Type:	Uv Laser	Condition:	New
Marking Depth:	0.01-0.1mm	Marking Speed:	≤7000 Mm/s, 0-7000mm/s
Cnc Or Not:	NO	Cooling System:	Air Cooling
Weight (kg):	80	Key Selling Points:	Multifunctional
Warranty:	1 Year	Mode Of Operation:	Pulsed
Configuration:	Stand-alone	Feature:	Air-cooled
Product Name:	UV Flying Laser Marking Machine	Applicable Material:	PPR, PVC, PE Materials, Etc
Application:	Acrylic MDF Plastic Fabric Wood	Cooling System:	Water Cooling
File Format:	PLT,DXF,AI,JPG,PNG	Laser Wavelength:	355nm

Product Description

Specification

Model	GH-3U-line
Laser Type	UV Laser
Laser Power	3W@50kHz
Laser Wavelength	355nm
Pulse Repetition Frequency	20~200kHz
Marking Area	7070mm 110110mm 140mm140mm 175mm175mm
Marking Speed	F=160mm, ≤7000mm/s
Minimum Line Width	0.01mm
Minimum Character	0.1mm
Repeated Precision	±0.001mm
Life-span of Fiber Laser Module	100 000hours

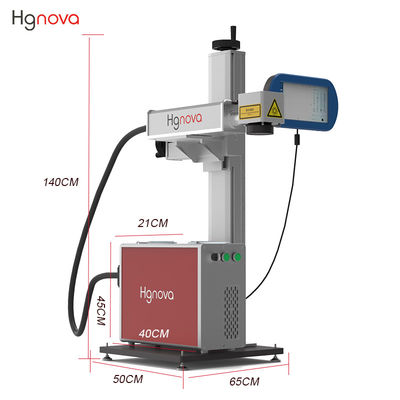

Control machine size	210×400×450mm
Marking control system	10 inch touch screen, customized control card and marking software by hglaser

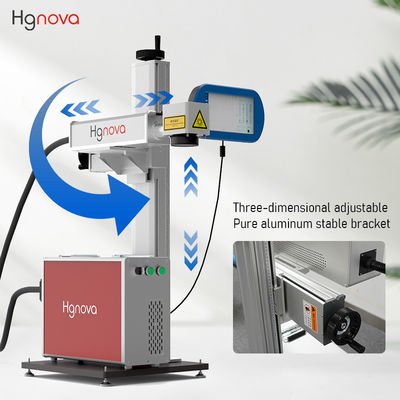

Elevating Axis	Up and down: 600-1000mm, front and back 0-150mm, 0-90 degree rotation
Cooling method	Water cooling temperature control accuracy of 0.1 ℃
Power Supply	1.2KW/AC220V/50Hz，5%
Temperature of Operation Environment	10~35°C
Ambient humidity	10%＜RH＜90%(if beyond the humidity range, the air conditioning will be needed)
Oil mist, condensation	It is not allowed.
