Name: 5W UV Desktop Laser Marking Machine Air-Cooled Small Business Laser Engraving DXF PLT BMP-Laser Marking Desktop Machines
Brand: Wuhan Hgguanghe Technology Co., Ltd.
Availability: InStock

Home Products UV laser marking machine

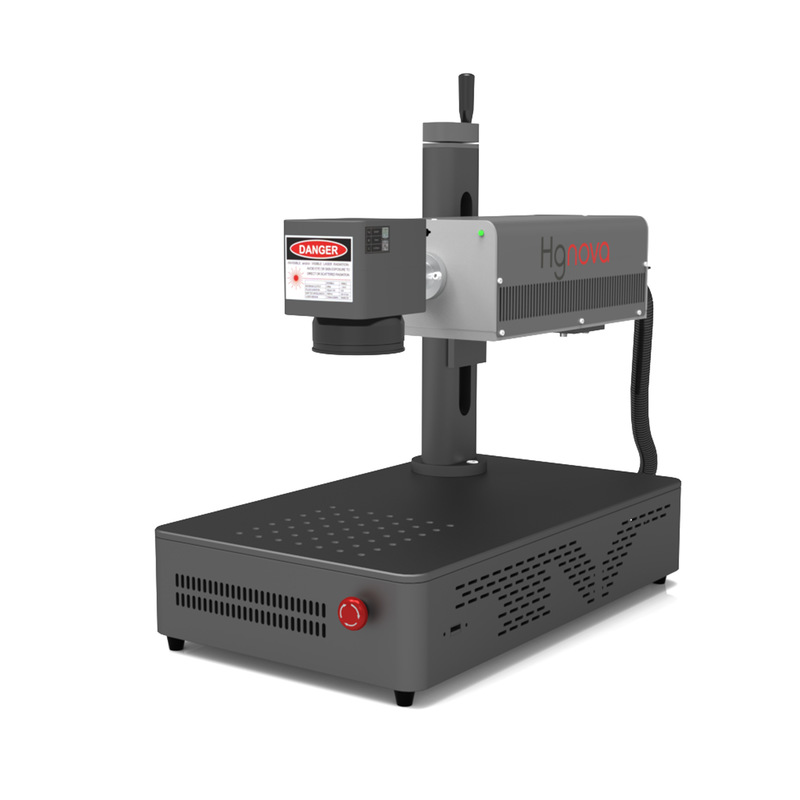

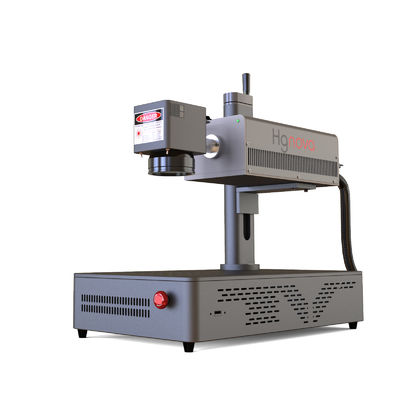

5W UV Desktop Laser Marking Machine Air-Cooled Small Business Laser Engraving DXF PLT BMP-Laser Marking Desktop Machines

Product Details:

Place of Origin:	Hubei, China

Contact Now

Detailed Product Description

Working Accuracy:	0.01mm	Graphic Format Supported:	PLT, JPg, DXF, BMP
Laser Type:	Uv Laser	Condition:	New
Marking Depth:	0.01-0.5mm	Marking Speed:	≤7000 Mm/s, ≤7000 Mm/s
Cooling System:	Air Cooling, Air Cooling	Weight (kg):	20
Key Selling Points:	Easy To Operate	Warranty:	1 Year
Mode Of Operation:	Pulsed	Configuration:	Mini
Feature:	Air-cooled	Product Name:	Desktop UV Laser Marking Machine
Applicable Material:	Metal Nonmetal Materials	Keywords:	Laser Markng Machine
Working Area:	100100mm/150150mm/175*175mm	Power Supply:	2.0KW/AC220V/50 HZ

Product Description

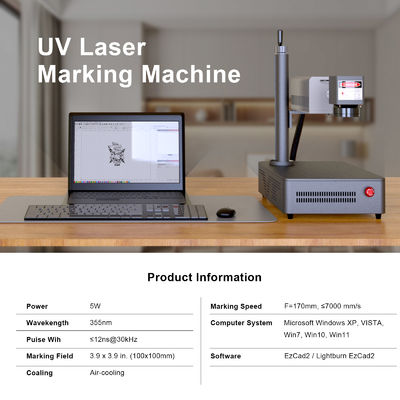

Specification

Laser Power	5W
Laser Wavelength	355nm
Pulse Repetition Frequency (PRF)	>3w@30kHz
Scanning Speed	10k~150kHz
F-Theta Lens	F=170mm,≤7000 mm/s
Working Area	100100mm/150150mm(optional)/175*175mm(optional)
Standard Marking Line Width	0.02mm (Material Dependent) @ f=170mm
Minimum Character Height	0.1mm @ f=170mm

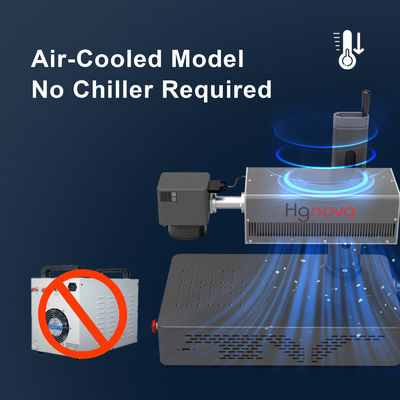

Cooling Method	Air Cooling
Height Adjustment	Manual Z-Axis Adjustment, Travel: 500mm
Total Power Consumption	600W
Power Supply	2.0kW / AC 220V (±10%) / 50 Hz
Supported File Formats	PLT, DXF, BMP
User Interface Languages	Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Arabic, Russian, Portuguese
Operating Temperature Range	15°C ~ 35°C. Air conditioning is required if used outside this range.
Operating Humidity Range	30% ≤ RH ≤ 80%. Risk of condensation exists if operated outside this humidity range.
Machine Dimensions	500mm x 330mm x 580mm
Machine Weight	* Net Weight: 20kg * Gross Weight: 22kg
