Name: Desktop UV Laser Marking Machine 3W Air Cooling Laser Engraving Machine for Plastics Glass Metal
Brand: Wuhan Hgguanghe Technology Co., Ltd.
Availability: InStock

Home Products UV laser marking machine

Desktop UV Laser Marking Machine 3W Air Cooling Laser Engraving Machine for Plastics Glass Metal

Product Details:

Place of Origin:	Hubei, China

Contact Now

Detailed Product Description

Working Accuracy:	0.01mm	Graphic Format Supported:	PLT, JPg, DXF, BMP
Laser Type:	Uv Laser	Condition:	New
Marking Depth:	0.01-0.5mm	Marking Speed:	≤7000 Mm/s, ≤7000 Mm/s
Cooling System:	Air Cooling, Air Cooling	Weight (kg):	20
Key Selling Points:	Easy To Operate	Warranty:	1 Year
Mode Of Operation:	Pulsed	Configuration:	Mini
Feature:	Air-cooled	Product Name:	Desktop UV Laser Marking Machine
Applicable Material:	Metal Nonmetal Materials	Machine Type:	UV Laser Marker
After-sales Service Provided:	24h Online Service	Working Area:	100100mm/150150mm/175*175mm
Power Supply:	2.0KW/AC220V/50 HZ

Product Description

Specification

Laser Power	3W
Laser Wavelength	355nm
Pulse Repetition Frequency (PRF)	>3w@30kHz
Scanning Speed	10k~150kHz
F-Theta Lens	F=170mm,≤7000 mm/s
Working Area	100100mm/150150mm(optional)/175*175mm(optional)
Standard Marking Line Width	0.02mm (Material Dependent) @ f=170mm
Minimum Character Height	0.1mm @ f=170mm

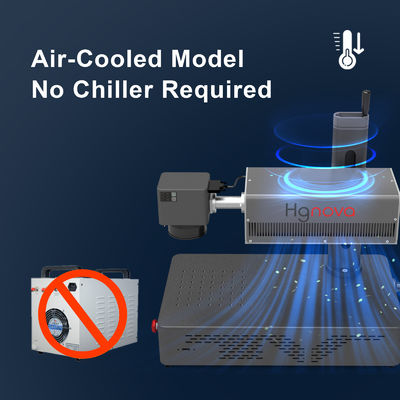

Cooling Method	Air Cooling
Height Adjustment	Manual Z-Axis Adjustment, Travel: 500mm
Total Power Consumption	600W
Power Supply	2.0kW / AC 220V (±10%) / 50 Hz
Supported File Formats	PLT, DXF, BMP
User Interface Languages	Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Arabic, Russian, Portuguese
Operating Temperature Range	15°C ~ 35°C. Air conditioning is required if used outside this range.
Operating Humidity Range	30% ≤ RH ≤ 80%. Risk of condensation exists if operated outside this humidity range.
Machine Dimensions	500mm x 330mm x 580mm
Machine Weight	* Net Weight: 20kg * Gross Weight: 22kg

Wuhan HGGuanghe Technology Co., Ltd

Located in Wuhan’s East Lake High-Tech Development Zone (China (Hubei) Pilot Free Trade Zone), is a wholly-owned subsidiary of Wuhan Huagong Laser Engineering Co., Ltd., part of HGTECH (Stock Code: 000988), a leading listed national high-tech enterprise.

Backed by a leading enterprise in China's laser equipment manufacturing industry

Huagong Laser (HGTECH) specializes in high-power cutting systems, precision micro-processing solutions, and laser source exports. Awarded the National Science and Technology Progress Award, the company leads the high-end laser equipment market globally.
